Tiny whoop case sized to its contents, with press-fit pockets, snap-pin hinges and a parts box

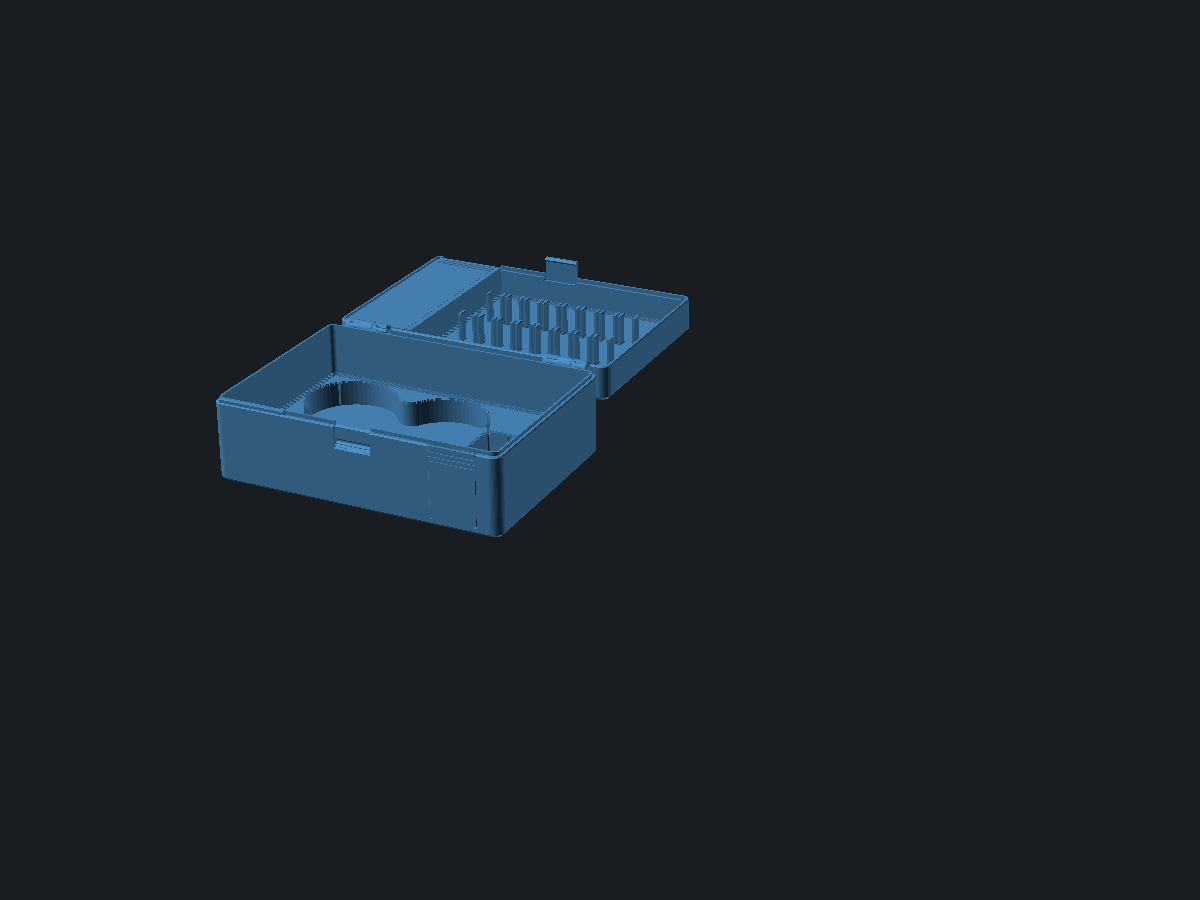

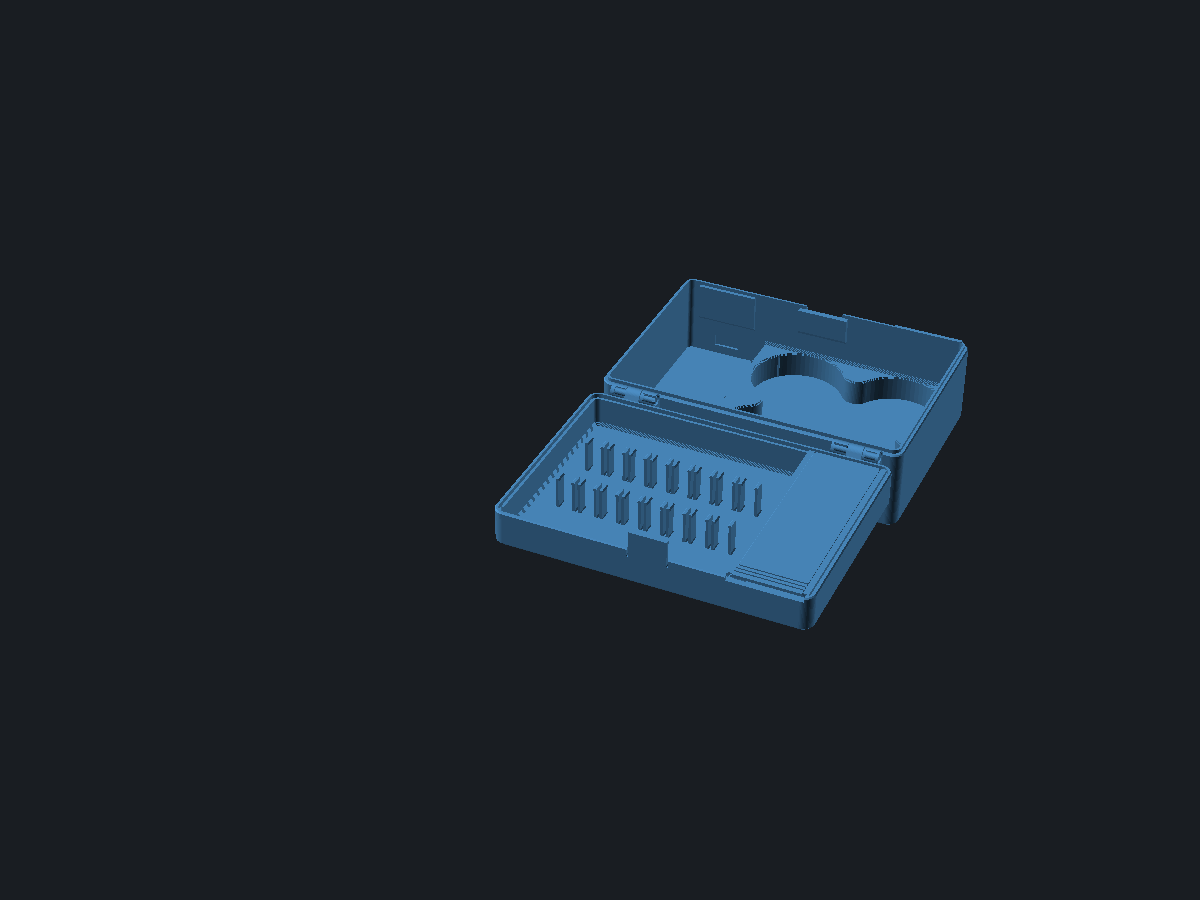

// Tiny whoop case: a whoop, its charger, a row of 1S batteries and a few spare parts
// in one hinged box, printed in PETG, with a smooth outside, no loose inserts and no
// hardware. The base is filled up to a deck with a pocket around the ducts of the
// whoop and a pocket for the charger in the front right corner (seen from the front
// with the lid open behind); crush ribs in both give a press fit. A flush slider
// covers the charging window, from under it up to the rim. The lid holds the
// batteries on their side in snap clips and, beside them, a parts box with a sliding
// cover. The two hinges turn on printed snap pins. Fillets, chamfers and a few ribs
// strengthen the small parts. The case is only as big as its contents need. Every
// part prints without supports.
//
// Coordinates: y = 0 at the rear (hinges), y = Sy at the front (latch). Seen from
// the front, the viewer's right is low x: the charger sits in the corner at low x,
// high y; the parts box runs along the high x side of the lid. The lid is modelled
// closed and flipped for printing.

/* [Part] */
// The whole case with the lid open, or one part in print orientation. pins lays out
// both snap pins; fit_frames is a thin ring of each pocket with its ribs, to check
// the fit before the whole base.
part = "assembly"; // [assembly, base, lid, slider, box_cover, pins, fit_frames]
// Print the mechanism coupons instead: one hinge in both halves with a snap pin,
// the latch in both halves, the slider channel with the slider, one battery clip,
// and the front end of the parts box with a piece of its cover.
test_print = false;
// Show the whoop, the charger and the batteries as ghosts in the assembly.
show_contents = false;

/* [Whoop] */
// Motor to motor across the diagonal: 80 for a Meteor75 Pro II.
whoop_wheelbase = 80; // [55:0.5:100]
// Outer diameter of one duct.
duct_d = 50; // [28:0.5:65]
// How far the pocket is filled in between the ducts, as a rounding radius: the
// higher, the shorter the deck reaches in between two ducts. 0 follows the ducts
// all the way in.
gap_fill = 8; // [0:0.5:16]
// Total height of the whoop, camera included: sets the height of the case.
whoop_h = 40; // [20:1:60]

/* [Charger] */
// The charger the pocket is cut for.
charger = "BetaFPV 6-port"; // [BetaFPV 6-port, BetaFPV BT2.0 board, custom]
// Size of a custom charger: length (port end to back), width and height.
custom_l = 79; // [40:0.5:120]
custom_w = 46; // [25:0.5:70]
custom_h = 19; // [8:0.5:35]
// Charging port: distance from the outer side of the charger to the middle of the
// port, and height of the middle of the port above the floor.
port_from_side = 23; // [10:0.5:40]
port_z = 9.5; // [6:0.5:20]

/* [Batteries] */
// LAVA size family: 480 to 680 mAh (15 mm wide), or 280 and 320 mAh (10 mm wide).
battery_class = "LAVA 480-680"; // [LAVA 480-680, LAVA 280-320]
// Batteries in the lid, standing on their side. 0 for an empty lid.
battery_count = 8; // [0:1:12]

/* [Parts box] */
// Inside width of the parts box in the lid, beside the batteries, with a sliding
// cover. 0 for no box.
parts_box_w = 35; // [0:1:60]

/* [Colour] */
// Display only, the STL carries no colour.
color_case = "SteelBlue"; // [SteelBlue, White, DimGray, Black, FireBrick, Goldenrod, ForestGreen, MediumPurple]

/* [Hidden] */
$fn = 64;
wall = 3.2;
floor_t = 2;
top_t = 2;
corner_r = 6;
bot_ch = 1.5;
top_ch = 2;
seam_ch = 0.6;
// fillets: size and number of steps (0.25 mm, about a layer); chamfer on the pocket
// edges
fil = 1.5;
fil_n = 6;
pocket_ch = 0.8;
// deck that fills the base around the pockets, clearance around the whoop and the
// charger, deck left between the pockets and around the whoop
deck_h = 14;
w_clr = 0.5;
c_clr = 0.3;
c_web = 3;
w_web = 1.2;
// crush ribs: how far into the clearance they stand past the device, base width
rib_c = 0.25;
rib_w = 0.2;
rib_b = 1.6;
// the charger
ch_l = charger == "BetaFPV 6-port" ? 79 : charger == "BetaFPV BT2.0 board" ? 75 : custom_l;
ch_w = charger == "BetaFPV 6-port" ? 46 : charger == "BetaFPV BT2.0 board" ? 42 : custom_w;
ch_h = charger == "BetaFPV 6-port" ? 19 : charger == "BetaFPV BT2.0 board" ? 22 : custom_h;
// port slider: width, how far it reaches below the middle of the window, thickness
sl_w = 26;
sl_below = 8;
sl_t = 1.6;
// parts box: wall, cover thickness, gap between the rim and the cover
pb_wall = 3;
pb_t = 1.6;
pb_g = 0.3;
box_on = parts_box_w > 0;
// lip on the base rim, recess in the lid
lip_h = 2;
lip_t = 1.2;
lip_c = 0.25;
// battery clips
big_bat = battery_class == "LAVA 480-680";
battery_w = big_bat ? 15.5 : 10.5;
battery_t = big_bat ? 7 : 6.5;
battery_l = big_bat ? 80 : 64;
bat_clr = 0.25;
arm_t = 1.4;
arm_w = 6;
arm_gap = 1.6;
bump = 0.7;
clip_y = 17;
// hinges: knuckle radius, axis behind the rear face, segment width and gap, length
// of one hinge (base, lid, base)
rk = 4;
hk = rk + 0.5;
seg_w = 8;
seg_gap = 0.4;
hinge_in = 22;
grp = 3 * seg_w + 2 * seg_gap;
// snap pins: hole, pin, head diameter and thickness, depth of the counterbore for
// the head and for the tail, radius of the tail counterbore, barb reach, height of
// the pin axis above its flat underside
pin_hole = 4;
pin_d = 3.6;
head_d = 5.6;
head_t = 1.4;
head_cb = 1.6;
tail_cb = 1.5;
tail_r = 2.8;
barb_r = 2.4;
pin_c0 = 1.3;
pin_l = grp - 0.4;
// latch
latch_w = 20;
latch_drop = 10;
tongue_t = 1.6;

sq = whoop_wheelbase / sqrt(2);
whoop_span = sq + duct_d;
whoop_zone = whoop_span + 2 * w_clr + 2 * w_web;
charger_zone = ch_w + c_clr + c_web;
bat_pitch = battery_t + 2 * (bat_clr + arm_t) + arm_gap;
lid_need = battery_count * bat_pitch + 8 + (box_on ? parts_box_w + 2 * pb_wall + 2 : 0);
Sx_in = max(charger_zone + whoop_zone, lid_need, 2 * hinge_in + 30);
Sy_in = max(whoop_zone, ch_l + c_clr + c_web, battery_l + 12);
Sx = Sx_in + 2 * wall;
Sy = Sy_in + 2 * wall;
fz = floor_t;
cav_h = max(whoop_h + 2, ch_h + 4, deck_h + 4);
base_h = fz + cav_h;
zc = base_h;
lid_cav = max(battery_w + 2.5, 9);
lid_h = top_t + lid_cav;
pb = zc + lid_h - top_t;
// charger pocket: against the outer and the front wall
yf = Sy - wall;
cx_in = wall + ch_w + c_clr;
cy_r = yf - ch_l - c_clr;
// whoop centre, in the zone right of the charger
dx = wall + charger_zone + (Sx_in - charger_zone) / 2;
dy = Sy / 2;
r_rib = whoop_wheelbase / 2 + duct_d / 2 + w_clr;
// parts box across x: inner faces of its outer wall and of its partition; the free
// edge of its walls just above the rim
bi1 = Sx - wall - pb_wall;
bi0 = bi1 - parts_box_w;
z_e = zc + pb_g;
// the battery row, centred in what the box leaves
xr0 = wall + 4;
xr1 = box_on ? bi0 - pb_wall - 2 : Sx - wall - 4;
bat_cx = (xr0 + xr1) / 2;
// charging window, and the slider from sl_below under its middle up to the rim
px = max(corner_r + sl_w / 2 + sl_t + 1.5, wall + port_from_side);
pz = fz + max(9.5, min(port_z, cav_h - 10));
sl_z0 = pz - sl_below;
sl_h = zc - 0.2 - sl_z0;

// ---- 2D helpers ----

module outer2d() {
  offset(r = corner_r) offset(delta = -corner_r) square([Sx, Sy]);
}

module inset2d(k) {
  offset(r = -k) outer2d();
}

module ring2d(a, b) {
  difference() { inset2d(a); inset2d(b); }
}

// Horizontal hole that prints without support: the tip points up in 2D y.
module teardrop2d(r) {
  circle(r = r);
  rotate(45) square(r);
}

// The same with its tip cut flat at top, a short bridge, so it stays inside a
// knuckle.
module teardrop_flat2d(r, top) {
  intersection() {
    teardrop2d(r);
    translate([-r - 1, -r - 1]) square([2 * r + 2, r + 1 + top]);
  }
}

// Whoop outline: four ducts on a square of side s, and the frame between them.
module whoop2d(s, d) {
  for (sx = [-1, 1], sy = [-1, 1]) translate([sx * s / 2, sy * s / 2]) circle(d = d);
  square(s, center = true);
}

// The whoop pocket, about the whoop centre: the outline with its clearance, closed
// with a radius of gap_fill, so the notches between the ducts are filled in and the
// deck there ends in a round tip instead of reaching in between them.
module whoop_pocket2d() {
  if (gap_fill > 0)
    offset(r = -gap_fill) offset(r = gap_fill) offset(r = w_clr) whoop2d(sq, duct_d);
  else
    offset(r = w_clr) whoop2d(sq, duct_d);
}

// The charger pocket, open into the outer and the front wall.
module charger_pocket2d() {
  translate([wall - 1, cy_r]) offset(r = 1) offset(delta = -1) square([cx_in - wall + 1, yf - cy_r + 1]);
}

// The deck in plan: the inside of the base less the two pockets.
module deck2d() {
  difference() {
    inset2d(wall - 0.01);
    translate([dx, dy]) whoop_pocket2d();
    charger_pocket2d();
  }
}

// The charging window: 14 x 9 with chamfered top corners, so the top is an 8 mm
// bridge.
module win2d() {
  polygon([[-7, -4.5], [7, -4.5], [7, 1.5], [4, 4.5], [-4, 4.5], [-7, 1.5]]);
}

// ---- Sliding plate ----
// The port slider and the parts box cover: a plate w wide on its narrow face, l long
// and t thick, whose edges flare at 45 degrees to the wide face, printed wide face
// down. The leading corners at y = 0 are chamfered so the plate finds its dovetail.
// Three grooves across the narrow face near the far end give a fingertip a grip.
// Local frame: x across, y along, z from the wide face to the narrow face.
module slide_plate(w, l, t) {
  difference() {
    hull() {
      translate([-t, 0, 0]) cube([w + 2 * t, l, 0.01]);
      translate([0, 0, t - 0.01]) cube([w, l, 0.01]);
    }
    for (gy = [l - 3, l - 5.5, l - 8]) translate([-t - 1, gy - 0.4, t - 0.6]) cube([w + 2 * t + 2, 0.8, 1]);
    for (m = [0, 1]) translate([m ? w : 0, 0, -1]) mirror([m, 0, 0]) linear_extrude(t + 2)
      polygon([[-t - 1, -1], [2.2, -1], [-t - 1, t + 2.2]]);
  }
}

// ---- Crush rib ----
// An upright rib on a pocket wall at the origin, standing d into the pocket along
// +x, tapered at the top so the device slides onto it.
module rib(h, d) {
  hull() {
    linear_extrude(h - 1.5) polygon([[-0.3, -rib_b / 2], [d, 0], [-0.3, rib_b / 2]]);
    translate([-0.3, -rib_b / 2, h - 0.01]) cube([0.31, rib_b, 0.01]);
  }
}

// Two ribs on the inner wall and two on the rear wall of the charger pocket: they
// press the charger into the corner against the front and the outer wall.
module charger_ribs(x0, y0, h) {
  for (f = [0.25, 0.75]) {
    translate([x0 + ch_w + c_clr, y0 + ch_l * f, 0]) rotate(180) rib(h, c_clr + rib_c);
    translate([x0 + ch_w * f, y0, 0]) rotate(90) rib(h, c_clr + rib_c);
  }
}

// Four ribs on the diagonals, at the outer point of each duct, pushing toward the
// centre. Drawn about the whoop centre.
module whoop_ribs(h) {
  for (sx = [-1, 1], sy = [-1, 1])
    translate([sx * r_rib / sqrt(2), sy * r_rib / sqrt(2), 0]) rotate(atan2(-sy, -sx)) rib(h, w_clr + rib_w);
}

// ---- Hinge ----
// Knuckle profile in (y, z) about the hinge axis, which sits hk behind the rear face
// at rim height. Its underside runs into the wall at 45 degrees. The lid mirrors it
// about the rim, so both halves print without support; the pin hole is a teardrop.

module knuckle_profile() {
  difference() {
    hull() {
      translate([-hk, 0]) circle(r = rk);
      translate([-0.01, -hk - 1.42 * rk]) square([1, hk + 1.42 * rk - 2]);
    }
    translate([-hk, 0]) teardrop2d(pin_hole / 2);
  }
}

module knuckle2d(upper) {
  translate([0, zc]) {
    if (upper) mirror([0, 1]) knuckle_profile();
    else knuckle_profile();
  }
}

// Two hinges, each base-lid-base on one snap pin.
module knuckles(upper) {
  for (gx = [hinge_in, Sx - hinge_in], k = upper ? [0] : [-1, 1])
    translate([gx + k * (seg_w + seg_gap) - seg_w / 2, 0, 0])
      rotate([90, 0, 90]) linear_extrude(seg_w) knuckle2d(upper);
}

// The ends of each hinge, as a transform: children are drawn for the left hinge,
// head end at x = 0 going +x; the right hinge is its mirror, head at its outer end.
module at_hinges() {
  translate([hinge_in - grp / 2, 0, 0]) children();
  translate([Sx - hinge_in + grp / 2, 0, 0]) mirror([1, 0, 0]) children();
}

// Counterbores in the end faces of the outer base knuckles: one for the pin head,
// one at the far end for the barbs of the tail.
module pin_counterbores() {
  at_hinges() {
    translate([-0.01, 0, 0]) rotate([90, 0, 90]) linear_extrude(head_cb + 0.01)
      translate([-hk, zc]) teardrop_flat2d(head_d / 2 + 0.2, head_d / 2 + 0.8);
    translate([grp - tail_cb, 0, 0]) rotate([90, 0, 90]) linear_extrude(tail_cb + 0.01)
      translate([-hk, zc]) teardrop_flat2d(tail_r, tail_r + 0.8);
  }
}

// ---- Snap pin ----
// Printed lying down, flat underside on the bed, axis pin_c0 above it, head at x = 0.
// The tail is split lengthwise in the plane of the bed, so its halves bend sideways,
// along their layers, as the barbs squeeze through the hole; past it they spring out
// and catch in the counterbore of the far knuckle. The split starts at a round relief
// so it cannot tear on. Head and tail sit 0.2 mm inside their counterbores.
module snap_pin() {
  xb = grp - 0.2 - tail_cb + 0.1;
  difference() {
    intersection() {
      union() {
        translate([0, 0, pin_c0]) rotate([0, 90, 0]) cylinder(d = head_d, h = head_t, $fn = 32);
        translate([0, 0, pin_c0]) rotate([0, 90, 0]) cylinder(d = pin_d, h = pin_l, $fn = 32);
        for (s = [-1, 1]) translate([0, 0, pin_c0 - 0.6]) linear_extrude(1.2)
          polygon([[xb, s * 0.9], [xb, s * barb_r], [pin_l, s * (pin_d / 2)], [pin_l, s * 0.9]]);
      }
      translate([-1, -5, 0]) cube([pin_l + 2, 10, 10]);
    }
    // the split tail, back to the start of the far base knuckle, with a round relief
    translate([grp - seg_w, -0.5, -1]) cube([pin_l, 1, 10]);
    translate([grp - seg_w, 0, -1]) cylinder(d = 1.6, h = 10, $fn = 16);
  }
}

module pins_placed() {
  at_hinges() translate([0.2, -hk, zc - pin_c0]) snap_pin();
}

module pins_flat() {
  snap_pin();
  translate([0, head_d + 3, 0]) snap_pin();
}

// ---- Base ----

module base_shell() {
  difference() {
    union() {
      hull() {
        linear_extrude(0.01) inset2d(bot_ch);
        translate([0, 0, bot_ch]) linear_extrude(base_h - bot_ch - seam_ch) outer2d();
        translate([0, 0, base_h - 0.01]) linear_extrude(0.01) inset2d(seam_ch);
      }
      // lip on the inner half of the rim, it locates the lid
      translate([0, 0, base_h - 0.01]) linear_extrude(lip_h + 0.01) ring2d(wall - lip_t, wall);
    }
    translate([0, 0, floor_t]) linear_extrude(base_h + lip_h) inset2d(wall);
  }
}

// The deck fills the base up to deck_h around the two pockets. Slice it with sparse
// infill.
module deck() {
  translate([0, 0, fz - 0.01]) linear_extrude(deck_h + 0.01) deck2d();
}

// A 45 degree fillet where the deck meets the walls, in steps of about a layer.
module deck_wall_fillet() {
  st = fil / fil_n;
  for (i = [0 : fil_n - 1]) let (w = fil - i * st)
    translate([0, 0, fz + deck_h + i * st - 0.01]) linear_extrude(st + 0.02)
      intersection() {
        difference() { inset2d(wall - 0.01); inset2d(wall + w); }
        deck2d();
      }
}

// Chamfer on the top edges of both pockets: a lead-in for the whoop and the charger.
module pocket_chamfers() {
  st = pocket_ch / 4;
  for (i = [0 : 3]) translate([0, 0, fz + deck_h - pocket_ch + i * st]) linear_extrude(st + 0.01)
    intersection() {
      inset2d(wall + 0.01);
      union() {
        translate([dx, dy]) offset(r = (i + 1) * st) whoop_pocket2d();
        offset(r = (i + 1) * st) charger_pocket2d();
      }
    }
}

// Key on the front rim, with chamfered top edges: it fills the slot the parts box
// cover slides out through, so the cover stays put and the outside is smooth when
// the case is closed.
module box_key() {
  kx = bi0 - pb_t - 0.2;
  kw = parts_box_w + 2 * pb_t + 0.4;
  kd = wall - seam_ch;
  kh = pb_g + pb_t + 0.8;
  if (box_on) hull() {
    translate([kx, Sy - wall, zc - 0.6]) cube([kw, kd, kh - 0.4]);
    translate([kx + 0.4, Sy - wall, zc - 0.6]) cube([kw - 0.8, kd - 0.4, kh]);
  }
}

module port_cut() {
  translate([0, Sy + 1, 0]) rotate([90, 0, 0]) linear_extrude(wall + 2) translate([px, pz]) win2d();
}

// Dovetail channel in the outer face of the front wall, from under the window up
// through the rim: narrow at the face, wide behind, its floor the stop at the bottom.
// The slider fills it up to the rim; the closed lid keeps it in.
module slider_channel() {
  a = sl_w / 2 + 0.2;
  b = sl_w / 2 + sl_t + 0.2;
  translate([px, 0, sl_z0]) linear_extrude(zc + lip_h + 1 - sl_z0)
    polygon([[-a, Sy + 0.01], [a, Sy + 0.01], [b, Sy - sl_t], [b, Sy - sl_t - 0.3], [-b, Sy - sl_t - 0.3], [-b, Sy - sl_t]]);
}

// Rib inside the front wall behind the slider channel, above the charger, with a
// 45 degree underside: it backs the thinned wall.
module channel_rib() {
  zb = fz + ch_h + 1.5;
  x0 = px - sl_w / 2 - sl_t - 2;
  if (zc - zb > 4) hull() {
    translate([x0, yf - 2, zb + 2]) cube([sl_w + 2 * sl_t + 4, 2.01, zc - zb - 2]);
    translate([x0, yf - 0.01, zb]) cube([sl_w + 2 * sl_t + 4, 0.02, 0.01]);
  }
}

// Boss inside the front wall behind the latch pocket, with a 45 degree underside.
module latch_boss() {
  hull() {
    translate([Sx / 2 - 14, yf - 3, zc - latch_drop - 3]) cube([28, 3.01, latch_drop + 3]);
    translate([Sx / 2 - 14, yf - 0.01, zc - latch_drop - 6]) cube([28, 0.02, 0.01]);
  }
}

// Recess for the flush tongue, a 45 degree lead-in over the wall top, the pocket the
// hook catches in, a scoop for a fingernail under the tongue, and a notch in the
// rim lip where the tongue passes.
module latch_cut() {
  zt = zc - latch_drop;
  translate([Sx / 2 - latch_w / 2 - 0.5, 0, 0]) rotate([90, 0, 90]) linear_extrude(latch_w + 1) {
    translate([Sy - 1.9, zt - 0.5]) square([3, latch_drop + 2]);
    polygon([[Sy - 1.89, zc - 1], [Sy - 1.89, zc + 1], [Sy - 2.9, zc + 1], [Sy - 2.9, zc]]);
    polygon([[Sy - 1.89, zt - 0.2], [Sy - 2.9, zt + 0.81], [Sy - 2.9, zt + 1.59], [Sy - 1.89, zt + 2.6]]);
    polygon([[Sy - 1.9, zt - 0.49], [Sy + 1, zt - 0.49], [Sy + 1, zt - 3.4]]);
  }
  translate([Sx / 2 - latch_w / 2 - 0.6, Sy - wall - 0.2, zc - 0.01]) cube([latch_w + 1.2, wall + 1.2, lip_h + 1]);
}

module base() {
  difference() {
    union() {
      base_shell();
      knuckles(false);
      deck();
      deck_wall_fillet();
      latch_boss();
      channel_rib();
      box_key();
    }
    pin_counterbores();
    port_cut();
    slider_channel();
    latch_cut();
    pocket_chamfers();
  }
  translate([0, 0, fz - 0.01]) charger_ribs(wall, cy_r, deck_h + 0.01);
  translate([dx, dy, fz - 0.01]) whoop_ribs(deck_h + 0.01);
}

// ---- Port slider ----
// The sliding plate, wide face against the wall, from the bottom of its channel to
// just under the rim; the grip grooves at its top end.

module slider_flat() {
  slide_plate(sl_w, sl_h, sl_t);
}

module slider_placed() {
  multmatrix([[1, 0, 0, px - sl_w / 2], [0, 0, 1, Sy - sl_t], [0, 1, 0, sl_z0], [0, 0, 0, 1]]) slider_flat();
}

// ---- Fit frames ----
// A thin ring of each pocket with its ribs, 6 mm tall: press the charger and the
// whoop in to check the fit on your printer before printing the whole base.

module fit_frames() {
  translate([2, 2, 0]) {
    linear_extrude(6) difference() {
      offset(r = 2) square([ch_w + c_clr, ch_l + c_clr]);
      square([ch_w + c_clr, ch_l + c_clr]);
    }
    charger_ribs(0, 0, 6);
  }
  translate([ch_w + 10 + whoop_span / 2 + w_clr + 2, whoop_span / 2 + w_clr + 2, 0]) {
    linear_extrude(6) difference() {
      offset(r = 2) whoop_pocket2d();
      whoop_pocket2d();
    }
    whoop_ribs(6);
  }
}

// ---- Lid ----

module lid_shell() {
  difference() {
    translate([0, 0, zc]) hull() {
      linear_extrude(0.01) inset2d(seam_ch);
      translate([0, 0, seam_ch]) linear_extrude(lid_h - seam_ch - top_ch) outer2d();
      translate([0, 0, lid_h - 0.01]) linear_extrude(0.01) inset2d(top_ch);
    }
    translate([0, 0, zc - 1]) linear_extrude(lid_cav + 1) inset2d(wall);
    // recess for the lip of the base
    translate([0, 0, zc - 1]) linear_extrude(lip_h + 0.3 + 1) ring2d(wall - lip_t - lip_c, wall + 0.01);
  }
}

// A 45 degree fillet under the lid plate along the lid walls, and along both faces
// of the parts box walls, in steps of about a layer.
module lid_fillets() {
  st = fil / fil_n;
  for (i = [0 : fil_n - 1]) let (w = fil - i * st)
    translate([0, 0, pb - (i + 1) * st]) linear_extrude(st + 0.01) {
      difference() { inset2d(wall - 0.01); inset2d(wall + w); }
      if (box_on) for (x0 = [bi0, bi1 - w, bi0 - pb_wall - w]) translate([x0, wall]) square([w, Sy - 2 * wall]);
    }
}

// The tongue is the outer skin of the lid front, carried on down past the rim into
// the recess of the base. Its hook rides over the lead-in and catches in the pocket.
module latch_tongue() {
  zt = zc - latch_drop;
  translate([Sx / 2 - latch_w / 2, 0, 0]) rotate([90, 0, 90]) linear_extrude(latch_w) {
    translate([Sy - tongue_t, zt]) square([tongue_t, latch_drop + 4]);
    polygon([[Sy - tongue_t + 0.01, zt], [Sy - 2.7, zt + 1.1], [Sy - 2.7, zt + 1.3], [Sy - tongue_t + 0.01, zt + 2.4]]);
  }
}

// Two slits and a relief behind the tongue free its upper 4 mm from the lid wall,
// so it flexes over latch_drop plus 4 mm. The slits end in round holes so they
// cannot tear on.
module tongue_relief() {
  for (s = [-1, 1]) {
    translate([Sx / 2 + s * (latch_w / 2 + 0.3) - 0.3, Sy - wall - 1, zc - 1]) cube([0.6, wall + 2, 5]);
    translate([Sx / 2 + s * (latch_w / 2 + 0.3), Sy - wall - 1, zc + 4]) rotate([-90, 0, 0]) cylinder(d = 1.2, h = wall + 2, $fn = 16);
  }
  translate([Sx / 2 - latch_w / 2 - 0.01, Sy - wall - 1, zc - 1]) cube([latch_w + 0.02, wall + 1 - tongue_t, 5]);
}

// Parts box: two walls along the full depth of the lid, from the plate to just above
// the rim, the outer one against the lid wall. A dovetail groove runs along the free
// edge of each, 45 degrees, for the cover.
module box_walls() {
  if (box_on) difference() {
    for (x0 = [bi0 - pb_wall, bi1]) translate([x0, wall - 0.01, z_e]) cube([pb_wall, Sy - 2 * wall + 0.02, pb - z_e + 0.01]);
    translate([0, Sy + 1, 0]) rotate([90, 0, 0]) linear_extrude(Sy + 2) {
      polygon([[bi1 - 0.01, z_e - 0.01], [bi1, z_e - 0.01], [bi1 + pb_t + 0.2, z_e + pb_t + 0.2], [bi1 - 0.01, z_e + pb_t + 0.2]]);
      polygon([[bi0 + 0.01, z_e - 0.01], [bi0, z_e - 0.01], [bi0 - pb_t - 0.2, z_e + pb_t + 0.2], [bi0 + 0.01, z_e + pb_t + 0.2]]);
    }
  }
}

// Slot in the lid front wall the cover slides out through; the key on the base rim
// fills it when the case is closed.
module box_slot() {
  if (box_on) translate([bi0 - pb_t - 0.4, Sy - wall - 1, zc - 0.01]) cube([parts_box_w + 2 * pb_t + 0.8, wall + 2, pb_g + pb_t + 0.4]);
}

function bat_x(i) = bat_cx + (i - (battery_count - 1) / 2) * bat_pitch;

// 1S batteries stand on their side, thickness across x, plug end along y. Two pairs
// of arms per battery, clip_y either side of the middle, so short and long batteries
// of the family both sit across them; each arm has a 45 degree bump that snaps over
// the free edge, and a root fillet on both faces where its bending stress peaks.
// arm_gap between neighbouring arms leaves room for an arm to give while the next
// slot is full.
module bat_clips() {
  if (battery_count > 0)
    for (i = [0 : battery_count - 1], yc = [Sy / 2 - clip_y, Sy / 2 + clip_y], s = [-1, 1]) {
      f = bat_x(i) + s * (battery_t / 2 + bat_clr);
      xo = f + s * arm_t;
      zb = pb - battery_w - 0.15;
      translate([0, yc + arm_w / 2, 0]) rotate([90, 0, 0]) linear_extrude(arm_w) {
        translate([s < 0 ? f - arm_t : f, pb - battery_w - 1.6]) square([arm_t, battery_w + 1.6 + 0.01]);
        polygon([[f + s * 0.01, zb], [f - s * bump, zb - bump], [f + s * 0.01, zb - 2 * bump]]);
        polygon([[xo - s * 0.01, pb + 0.01], [xo + s * 0.6, pb + 0.01], [xo - s * 0.01, pb - 0.6]]);
        polygon([[f + s * 0.01, pb + 0.01], [f - s * 0.4, pb + 0.01], [f + s * 0.01, pb - 0.4]]);
      }
    }
}

module lid() {
  difference() {
    union() {
      lid_shell();
      knuckles(true);
      bat_clips();
      latch_tongue();
      box_walls();
      lid_fillets();
    }
    tongue_relief();
    box_slot();
  }
}

module lid_print() {
  translate([0, Sy, zc + lid_h]) rotate([180, 0, 0]) lid();
}

// ---- Parts box cover ----
// The sliding plate, the grip grooves at its front end.

module box_cover_flat() {
  slide_plate(parts_box_w - 0.4, Sy - 2 * wall - 0.4, pb_t);
}

module box_cover_placed() {
  multmatrix([[1, 0, 0, bi0 + 0.2], [0, 1, 0, wall + 0.2], [0, 0, -1, z_e + pb_t], [0, 0, 0, 1]]) box_cover_flat();
}

// ---- Ghost contents ----

module ghost_whoop() {
  color("Gainsboro", 0.5) translate([dx, dy, fz]) {
    for (sx = [-1, 1], sy = [-1, 1]) translate([sx * sq / 2, sy * sq / 2, 0])
      difference() { cylinder(d = duct_d, h = 16); translate([0, 0, -1]) cylinder(d = duct_d - 2, h = 18); }
    translate([-12, -16, 0]) cube([24, 32, whoop_h]);
  }
}

module ghost_charger() {
  color("OrangeRed", 0.5) translate([wall, yf - ch_l, fz]) cube([ch_w, ch_l, ch_h]);
}

module ghost_batteries() {
  if (battery_count > 0)
    color("DimGray", 0.6) for (i = [0 : battery_count - 1])
      translate([bat_x(i) - battery_t / 2, Sy / 2 - battery_l / 2, pb - battery_w]) cube([battery_t, battery_l, battery_w]);
}

// ---- Test coupons ----

module coupon(lo, hi) {
  translate(-lo) intersection() { children(); translate(lo) cube(hi - lo); }
}

module test_layout() {
  g = 46;
  // hinge, base and lid half, and a snap pin
  coupon([hinge_in - 16, -hk - rk - 1, zc - 14], [hinge_in + 16, 6, zc + lip_h + 1]) base();
  translate([0, 22, 0]) coupon([hinge_in - 16, Sy - 6, 0], [hinge_in + 16, Sy + hk + rk + 1, lid_h + 12]) lid_print();
  translate([2, 44, 0]) snap_pin();
  // latch, base and lid half
  translate([g, 0, 0]) coupon([Sx / 2 - 16, Sy - 7, zc - latch_drop - 8], [Sx / 2 + 16, Sy + 0.1, zc + lip_h + 1]) base();
  translate([g, 22, 0]) coupon([Sx / 2 - 16, -0.1, 0], [Sx / 2 + 16, 7, lid_h + latch_drop + 1]) lid_print();
  // slider channel with the window, and the slider
  translate([2 * g, 0, 0]) coupon([px - 17, Sy - 5, max(0, sl_z0 - 3)], [px + 17, Sy + 0.1, zc + 0.5]) base();
  translate([2 * g + 4, 12, 0]) slider_flat();
  // one battery clip
  if (battery_count > 0) {
    yc = Sy / 2 - clip_y;
    bx = bat_x(0);
    translate([3 * g, 0, 0])
      coupon([bx - bat_pitch / 2 - 1, Sy - yc - arm_w / 2 - 4, 0], [bx + bat_pitch / 2 + 1, Sy - yc + arm_w / 2 + 4, lid_h + 1]) lid_print();
  }
  // front end of the parts box, and a piece of its cover
  if (box_on) {
    translate([0, 54, 0]) coupon([bi0 - pb_wall - 1, -0.1, 0], [Sx + 0.1, 20, lid_h + 1]) lid_print();
    translate([parts_box_w + 2 * pb_wall + 10, 54, 0])
      intersection() { box_cover_flat(); translate([-pb_t - 1, 0, -1]) cube([parts_box_w + 2 * pb_t + 2, 20, pb_t + 2]); }
  }
}

// ---- Layout ----

module assembly() {
  color(color_case) base();
  color(color_case) pins_placed();
  color(color_case) slider_placed();
  if (show_contents) { ghost_whoop(); ghost_charger(); }
  // lid swung open flat behind the base
  translate([0, -hk, zc]) rotate([180, 0, 0]) translate([0, hk, -zc]) {
    color(color_case) lid();
    if (box_on) color(color_case) box_cover_placed();
    if (show_contents) ghost_batteries();
  }
}

if (test_print) color(color_case) test_layout();
else if (part == "base") color(color_case) base();
else if (part == "lid") color(color_case) lid_print();
else if (part == "slider") color(color_case) slider_flat();
else if (part == "box_cover") color(color_case) box_cover_flat();
else if (part == "pins") color(color_case) pins_flat();
else if (part == "fit_frames") color(color_case) fit_frames();
else assembly();
