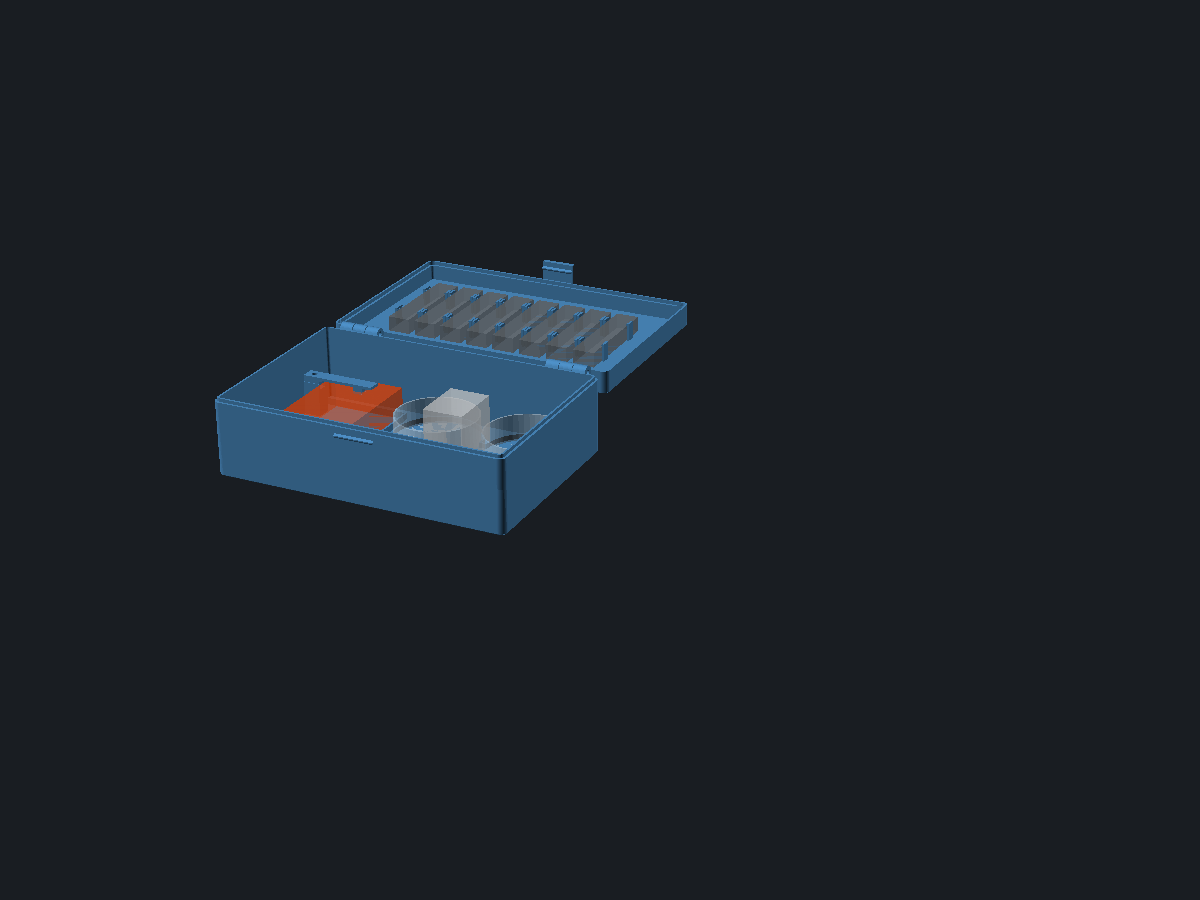

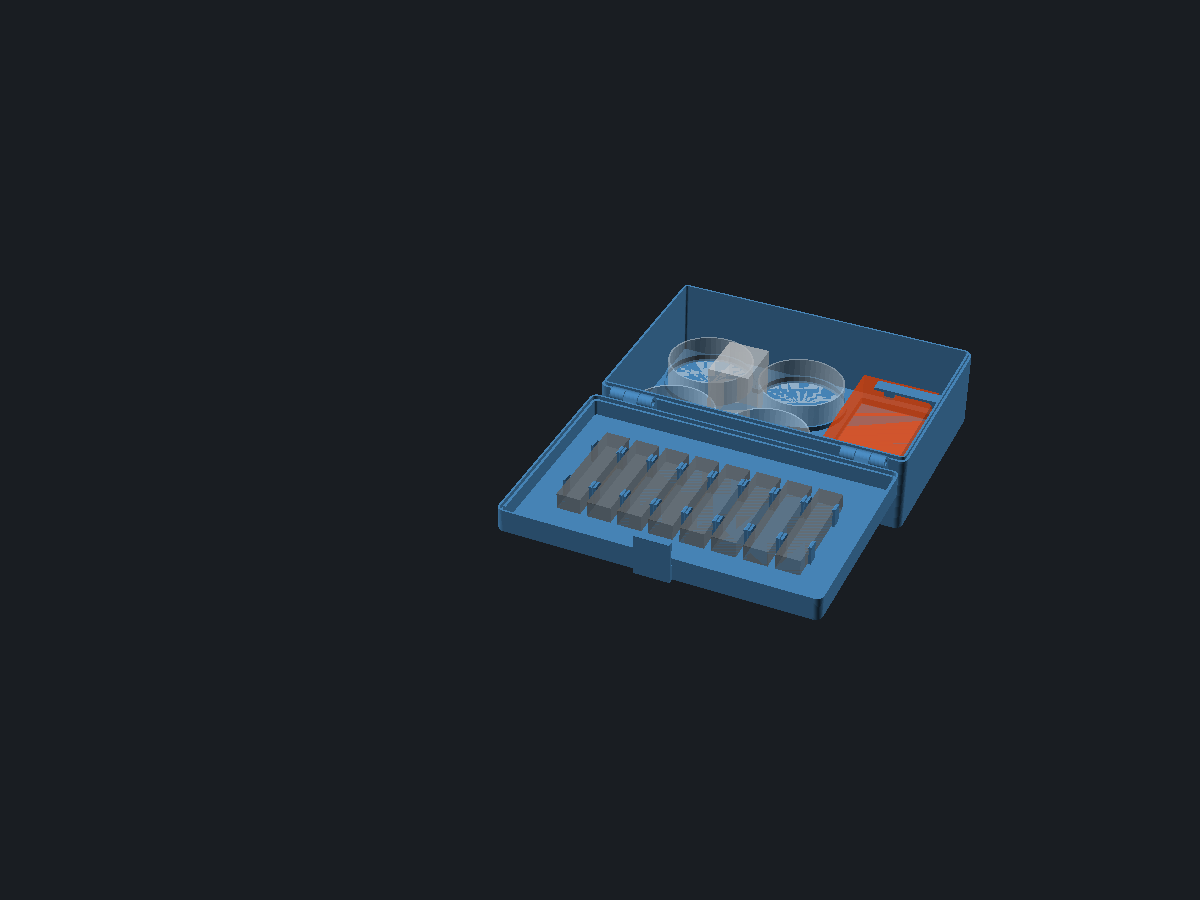

Tiny whoop case with charger clamps and battery clips

// Tiny whoop case: the whoop, its charger and a row of batteries in one hinged box.
// Printed in PETG. The base holds the whoop on the left in a locating ring and the
// charger on the right, pressed down by two flat-printed spring clamps that bolt onto
// posts. The lid holds the batteries in snap clips. Two pin hinges with an M3 bolt
// each at the rear, a snap latch at the front. Nothing is self-tapping and every
// part prints without supports.
//
// Coordinates: x across (whoop left, charger right), y = 0 at the rear (hinges),
// z = 0 under the base. The lid is modelled closed and flipped for printing.

/* [Part] */
// The whole case with the lid open, or one part in print orientation. Print the
// clamp part once: it lays out both clamps.
part = "assembly"; // [assembly, base, lid, clamp]
// Print a coupon set instead: one hinge and the latch in base and lid halves, one
// battery clip, one clamp post and one clamp. Checks every fit in about an hour.
test_print = false;

/* [Whoop] */
// Motor to motor across the diagonal. A 75 mm class whoop is about 80.
whoop_wheelbase = 80; // [60:0.5:120]
// Outer diameter of one duct.
duct_d = 50; // [30:0.5:70]
// Total height of the whoop, camera included.
whoop_h = 40; // [20:1:60]

/* [Charger] */
// Footprint of the charger. It lies lengthwise next to the whoop.
charger_l = 90; // [40:1:140]
charger_w = 45; // [20:1:80]
// Height of the lowest charger the clamps hold down. Chargers up to about 3 mm
// taller push the clamps up and are held as well.
charger_min_h = 20; // [8:1:40]

/* [Batteries] */
// Batteries in the lid, side by side. 0 for an empty lid.
battery_count = 8; // [0:1:12]
// Length with the plug, width and thickness of one battery.
battery_l = 62; // [40:1:80]
battery_w = 13.5; // [8:0.5:20]
battery_t = 9; // [5:0.5:14]

/* [Colour] */
// Display only, the STL carries no colour.
color_case = "SteelBlue"; // [SteelBlue, White, DimGray, Black, FireBrick, Goldenrod, ForestGreen, MediumPurple]

/* [Hidden] */
$fn = 48;
wall = 2.6;
floor_t = 2;
top_t = 2;
corner_r = 4;
// whoop locating ring
w_clr = 1;
ring_t = 1.2;
ring_h = 3;
// lip on the base rim, recess in the lid
lip_h = 2;
lip_t = 1.2;
lip_c = 0.25;
// charger bay and spring clamps
ch_clr = 0.5;
rib_h = 4;
post_x = 10;
post_y = 9;
post_gap = 1;
anchor_t = 4;
strip_t = 1.6;
strip_w = 8;
finger_len = 4;
preload = 1.5;
pad_l = 6;
tab_l = 6;
bolt_d = 3.4;
nut_af = 5.7;
nut_ac = nut_af / cos(30);
nut_h = 2.6;
nut_top = 1.2;
// battery clips
bat_clr = 0.25;
arm_t = 1.4;
arm_w = 6;
arm_gap = 0.6;
bump = 0.7;
// hinges: knuckle radius, axis behind the rear face, segment width and gap
rk = 4;
hk = rk + 0.5;
seg_w = 8;
seg_gap = 0.4;
hinge_in = 22;
// latch
latch_w = 20;
latch_drop = 8;
tongue_t = 1.6;
ridge_d = 1;
latch_gap = 0.3;

sq = whoop_wheelbase / sqrt(2);
whoop_span = sq + duct_d;
drone_need = whoop_span + 2 * (w_clr + ring_t) + 2;
right_need = 2 + ch_clr + ring_t + charger_w + post_gap + post_x;
bat_pitch = battery_w + 2 * (bat_clr + arm_t) + arm_gap;
Sx_in = max(drone_need + right_need, battery_count * bat_pitch + 8);
Sy_in = max(drone_need, charger_l + 2 * (ch_clr + ring_t) + 2, battery_l + 12);
Sx = Sx_in + 2 * wall;
Sy = Sy_in + 2 * wall;
fz = floor_t;
cav_h = max(whoop_h + 2, charger_min_h + 10.5);
base_h = floor_t + cav_h;
zc = base_h;
lid_cav = max(battery_t + 2.5, 9);
lid_h = top_t + lid_cav;
pb = zc + lid_h - top_t;
// whoop centre
dx = wall + (Sx_in - right_need) / 2;
dy = Sy / 2;
// charger footprint and clamp posts
xr = Sx - wall;
cx1 = xr - post_x - post_gap;
cx0 = cx1 - charger_w;
cy0 = Sy / 2 - charger_l / 2;
cy1 = Sy / 2 + charger_l / 2;
post_cx = xr - post_x / 2;
post_ys = [cy0 + 12, cy1 - 12];
pad_x = cx1 - 0.55 * charger_w;
reach = (xr - post_x) - pad_x;
strip_bot = fz + charger_min_h - preload + finger_len;
post_top = strip_bot - (anchor_t - strip_t);
// latch ridge
zr = zc - latch_drop + 2.4;

// ---- 2D helpers ----

module outer2d() {
  offset(r = corner_r) offset(delta = -corner_r) square([Sx, Sy]);
}

module inset2d(k) {
  offset(r = -k) outer2d();
}

module ring2d(a, b) {
  difference() { inset2d(a); inset2d(b); }
}

// Horizontal hole that prints without support: the tip points up in 2D y.
module teardrop2d(r) {
  circle(r = r);
  rotate(45) square(r);
}

module whoop2d() {
  for (sx = [-1, 1], sy = [-1, 1]) translate([sx * sq / 2, sy * sq / 2]) circle(d = duct_d);
  square(sq, center = true);
}

// ---- Hinge ----
// Knuckle profile in (y, z) about the hinge axis, which sits hk behind the rear face
// at rim height. Its underside runs into the wall at 45 degrees. The lid mirrors it
// about the rim, so both halves print without support.

module knuckle_profile() {
  difference() {
    hull() {
      translate([-hk, 0]) circle(r = rk);
      translate([-0.01, -hk - 1.42 * rk]) square([1, hk + 1.42 * rk - 2]);
    }
    translate([-hk, 0]) teardrop2d(bolt_d / 2);
  }
}

module knuckle2d(upper) {
  translate([0, zc]) {
    if (upper) mirror([0, 1]) knuckle_profile();
    else knuckle_profile();
  }
}

// Two hinges, each base-lid-base on one M3 x 30 bolt with a nut.
module knuckles(upper) {
  for (gx = [hinge_in, Sx - hinge_in], k = upper ? [0] : [-1, 1])
    translate([gx + k * (seg_w + seg_gap) - seg_w / 2, 0, 0])
      rotate([90, 0, 90]) linear_extrude(seg_w) knuckle2d(upper);
}

// ---- Base ----

module base_shell() {
  difference() {
    union() {
      hull() {
        linear_extrude(0.01) inset2d(0.5);
        translate([0, 0, 0.5]) linear_extrude(base_h - 0.5) outer2d();
      }
      // lip on the inner half of the rim, it locates the lid
      translate([0, 0, base_h - 0.01]) linear_extrude(lip_h + 0.01) ring2d(wall - lip_t, wall);
    }
    translate([0, 0, floor_t]) linear_extrude(base_h + lip_h) inset2d(wall);
  }
}

// Low ring around the ducts and the frame: the whoop drops in and cannot slide.
module whoop_ring() {
  translate([dx, dy, fz - 0.01]) linear_extrude(ring_h + 0.01)
    difference() {
      offset(r = w_clr + ring_t) whoop2d();
      offset(r = w_clr) whoop2d();
    }
}

// Low ribs on the whoop side and both ends of the charger; the posts close the
// fourth side.
module charger_ribs() {
  x0 = cx0 - ch_clr - ring_t;
  translate([0, 0, fz - 0.01]) linear_extrude(rib_h + 0.01) difference() {
    translate([x0, cy0 - ch_clr - ring_t]) square([xr + 0.01 - x0, charger_l + 2 * (ch_clr + ring_t)]);
    translate([cx0 - ch_clr, cy0 - ch_clr]) square([xr + 1 - (cx0 - ch_clr), charger_l + 2 * ch_clr]);
  }
}

// Two posts against the right wall carry the clamps. Each traps an M3 nut in a slot
// open toward the charger, under nut_top of material; the clamp bolts on from above
// with an M3 x 8. The charger covers the slot, so the nut cannot fall out.
module posts() {
  for (py = post_ys) difference() {
    translate([xr - post_x, py - post_y / 2, fz - 0.01]) cube([post_x + 0.5, post_y, post_top - fz + 0.01]);
    translate([post_cx, py, max(fz + 0.4, post_top - 8)]) cylinder(d = bolt_d, h = 9);
    translate([xr - post_x - 1, py - nut_af / 2, post_top - nut_top - nut_h])
      cube([post_x / 2 + 1 + nut_ac / 2 + 0.2, nut_af, nut_h]);
  }
}

// Ridge on the front wall that the latch hook catches; both faces at 45 degrees.
module latch_ridge() {
  translate([Sx / 2 - (latch_w + 4) / 2, 0, 0]) rotate([90, 0, 90]) linear_extrude(latch_w + 4)
    polygon([[Sy - 0.5, zr - 1.5], [Sy + ridge_d, zr], [Sy + ridge_d, zr + 0.6], [Sy - 0.5, zr + 2.1]]);
}

module base() {
  base_shell();
  knuckles(false);
  whoop_ring();
  charger_ribs();
  posts();
  latch_ridge();
}

// ---- Charger clamp ----
// A flat strip printed on the bed, so it bends along its layers. The anchor bolts on
// a post, the strip spans over the charger and a pad under its end presses the
// charger down with preload. A taller charger lifts the strip. The tab past the pad
// lifts it by hand. Drawn as fitted: bolt at the origin, strip along +u.

module clamp() {
  pu = 5 + reach;
  difference() {
    union() {
      translate([-5, -strip_w / 2, 0]) cube([10, strip_w, anchor_t]);
      translate([4.99, -strip_w / 2, anchor_t - strip_t]) cube([reach + pad_l / 2 + tab_l + 0.01, strip_w, strip_t]);
      // fillet where the strip leaves the anchor
      hull() {
        translate([4.99, -strip_w / 2, 1]) cube([0.01, strip_w, anchor_t - 1]);
        translate([5, -strip_w / 2, anchor_t - strip_t]) cube([2.5, strip_w, strip_t]);
      }
      // pad, chamfered at its foot
      hull() {
        translate([pu - pad_l / 2, -strip_w / 2, anchor_t - strip_t - finger_len + 0.8])
          cube([pad_l, strip_w, finger_len - 0.8 + 0.01]);
        translate([pu - pad_l / 2 + 0.8, -strip_w / 2, anchor_t - strip_t - finger_len])
          cube([pad_l - 1.6, strip_w, 0.01]);
      }
    }
    translate([0, 0, -1]) cylinder(d = bolt_d, h = anchor_t + 2);
  }
}

module clamps_placed() {
  for (py = post_ys) translate([post_cx, py, post_top]) rotate(180) clamp();
}

module clamp_print() {
  translate([0, 0, anchor_t]) rotate([180, 0, 0]) clamp();
}

// ---- Lid ----

module lid_shell() {
  difference() {
    translate([0, 0, zc]) hull() {
      linear_extrude(lid_h - 0.5) outer2d();
      translate([0, 0, lid_h - 0.01]) linear_extrude(0.01) inset2d(0.5);
    }
    translate([0, 0, zc - 1]) linear_extrude(lid_cav + 1) inset2d(wall);
    // recess for the lip of the base
    translate([0, 0, zc - 1]) linear_extrude(lip_h + 0.3 + 1) ring2d(wall - lip_t - lip_c, wall + 0.01);
  }
}

// Snap tongue on the front. Its hook catches under the ridge of the base; the lip
// at its end is for a fingernail. It flexes over latch_drop plus 4 mm of free length.
module latch_tongue() {
  yt = Sy + ridge_d + latch_gap;
  zt = zc - latch_drop - 3;
  translate([Sx / 2 - latch_w / 2, 0, 0]) rotate([90, 0, 90]) linear_extrude(latch_w) {
    translate([Sy - 0.5, zc + 4]) square([yt + tongue_t - (Sy - 0.5), lid_h - 4]);
    translate([yt, zt]) square([tongue_t, zc + 4.01 - zt]);
    polygon([[yt + 0.01, zr + 0.2], [Sy + latch_gap, zr - 0.8], [Sy + latch_gap, zr - 1.4], [yt + 0.01, zr - 2.4]]);
    polygon([[yt + tongue_t - 0.01, zt], [yt + tongue_t + 1.5, zt], [yt + tongue_t - 0.01, zt + 1.5]]);
  }
}

function bat_x(i) = Sx / 2 + (i - (battery_count - 1) / 2) * bat_pitch;

// Batteries lie flat against the lid plate. Each is held by two pairs of arms with a
// 45 degree bump that snaps over its free face. Neighbouring arms stand apart, so
// every arm flexes on its own.
module bat_clips() {
  if (battery_count > 0)
    for (i = [0 : battery_count - 1], yc = [Sy / 2 - 0.28 * battery_l, Sy / 2 + 0.28 * battery_l], s = [-1, 1]) {
      f = bat_x(i) + s * (battery_w / 2 + bat_clr);
      zb = pb - battery_t - 0.15;
      translate([0, yc + arm_w / 2, 0]) rotate([90, 0, 0]) linear_extrude(arm_w) {
        translate([s < 0 ? f - arm_t : f, pb - battery_t - 1.6]) square([arm_t, battery_t + 1.6 + 0.01]);
        polygon([[f + s * 0.01, zb], [f - s * bump, zb - bump], [f + s * 0.01, zb - 2 * bump]]);
      }
    }
}

module lid() {
  lid_shell();
  knuckles(true);
  bat_clips();
  latch_tongue();
}

module lid_print() {
  translate([0, Sy, zc + lid_h]) rotate([180, 0, 0]) lid();
}

// ---- Ghost hardware ----

module ghost_whoop() {
  color("Gainsboro", 0.5) translate([dx, dy, fz]) {
    for (sx = [-1, 1], sy = [-1, 1]) translate([sx * sq / 2, sy * sq / 2, 0])
      difference() { cylinder(d = duct_d, h = 16); translate([0, 0, -1]) cylinder(d = duct_d - 2, h = 18); }
    translate([-12, -16, 0]) cube([24, 32, whoop_h]);
  }
}

module ghost_charger() {
  color("OrangeRed", 0.5) translate([cx0, cy0, fz]) cube([charger_w, charger_l, charger_min_h]);
}

module ghost_batteries() {
  if (battery_count > 0)
    color("DimGray", 0.6) for (i = [0 : battery_count - 1])
      translate([bat_x(i) - battery_w / 2, Sy / 2 - battery_l / 2, pb - battery_t]) cube([battery_w, battery_l, battery_t]);
}

// ---- Test coupons ----

module coupon(lo, hi) {
  translate(-lo) intersection() { children(); translate(lo) cube(hi - lo); }
}

module test_layout() {
  g = 42;
  // hinge, base and lid half
  coupon([hinge_in - 16, -hk - rk - 1, zc - 14], [hinge_in + 16, 6, zc + lip_h + 1]) base();
  translate([0, 22, 0]) coupon([hinge_in - 16, Sy - 6, 0], [hinge_in + 16, Sy + hk + rk + 1, lid_h + 12]) lid_print();
  // latch, base and lid half
  translate([g, 0, 0]) coupon([Sx / 2 - 16, Sy - 6, zc - 14], [Sx / 2 + 16, Sy + 5, zc + lip_h + 1]) base();
  translate([g, 22, 0]) coupon([Sx / 2 - 16, -6, 0], [Sx / 2 + 16, 6, lid_h + latch_drop + 5]) lid_print();
  // clamp post with its nut slot
  translate([2 * g, 0, 0]) coupon([xr - post_x - 4, post_ys[0] - 8, 0], [Sx + 0.1, post_ys[0] + 8, post_top + 1]) base();
  // one battery clip
  if (battery_count > 0) {
    yc = Sy / 2 - 0.28 * battery_l;
    bx = bat_x(0);
    translate([2 * g, 22, 0])
      coupon([bx - bat_pitch / 2 - 1, Sy - yc - arm_w / 2 - 4, 0], [bx + bat_pitch / 2 + 1, Sy - yc + arm_w / 2 + 4, lid_h + 1]) lid_print();
  }
  // one clamp
  translate([3 * g, 4, 0]) clamp_print();
}

// ---- Layout ----

module assembly() {
  color(color_case) base();
  color(color_case) clamps_placed();
  ghost_whoop();
  ghost_charger();
  // lid swung open flat behind the base
  translate([0, -hk, zc]) rotate([180, 0, 0]) translate([0, hk, -zc]) {
    color(color_case) lid();
    ghost_batteries();
  }
}

if (test_print) color(color_case) test_layout();
else if (part == "base") color(color_case) base();
else if (part == "lid") color(color_case) lid_print();
else if (part == "clamp") color(color_case) { clamp_print(); translate([0, strip_w + 6, 0]) clamp_print(); }
else assembly();
