The end section of a long rod that is printed in pieces: a plain cylinder with a threaded stub on one end, so it screws into the next section.

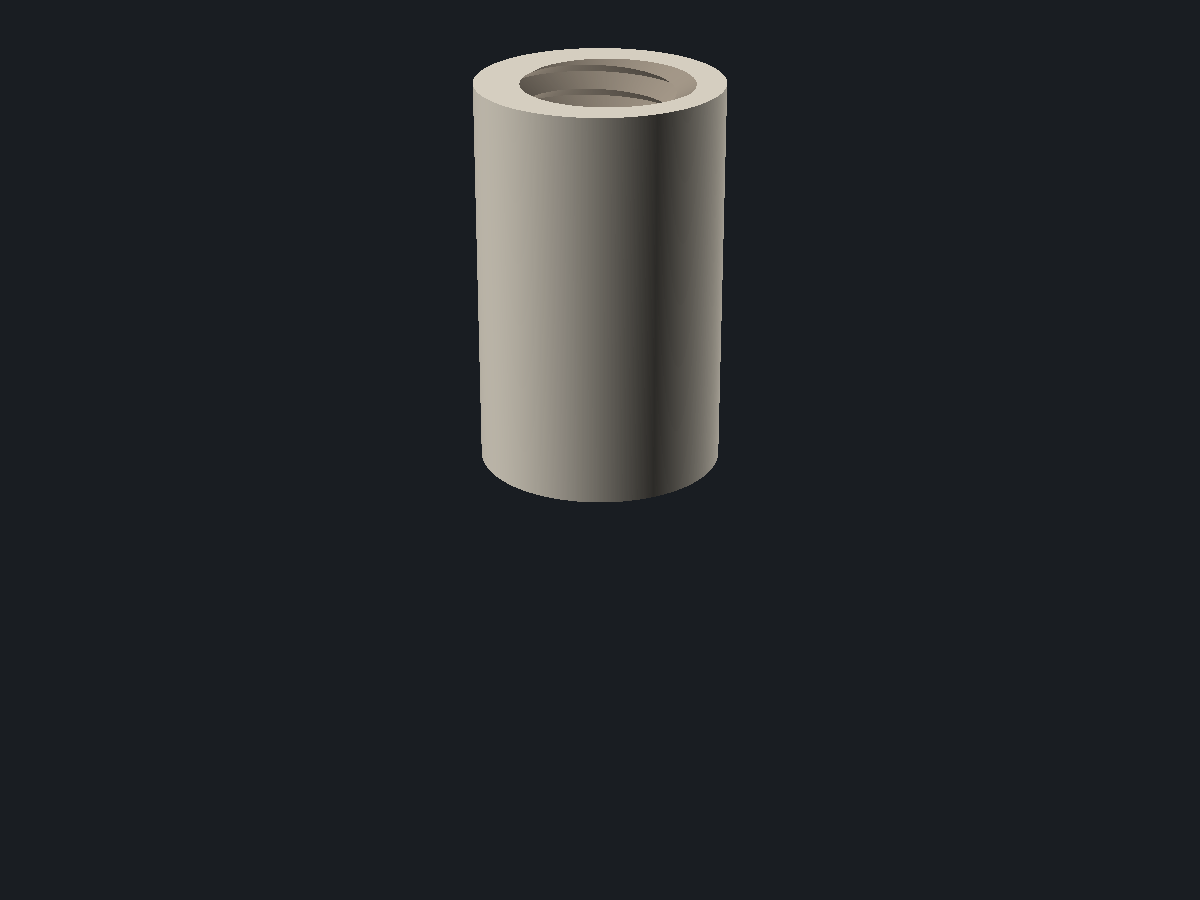

The image shows the solid OpenSCAD renders at diameter 25 · height 40.
Threaded rod end
remixcad/threaded-rod-end@1.0.0
Report
For a legal or policy problem: a license violation, personal data, somebody else’s work republished as their own. A model that prints badly is a comment, not a report.
Parameters
from sourceDescription
What is this
The end section of a long rod that is printed in pieces: a plain cylinder with a threaded stub on one end, so it screws into the next section.
What you use it for
Printing something longer than your build plate. Print an end, as many extenders as you need, and another end, then screw them together into one rod.
Design notes
The joint is a thread rather than a glued butt, so the rod can be taken apart again and the seam carries load in both directions. The thread dimensions are derived from the rod diameter, so the pieces of a set match as long as you keep the diameter the same.
Parameters
diameter is the rod body and has to be the same across every section of one rod. height is this section only, so the total is the sum of the pieces.
Use with your agent
{
"mcpServers": {
"remixcad": {
"type": "http",
"url": "https://remix-cad.vercel.app/api/mcp"
}
}
}get_model("remixcad/threaded-rod-end@1.0.0")Returns the manifest, the source, the import closure and the license obligations. Full MCP setup.
Parameter table
Parsed from the Customizer annotations in main.scad| Name | Default | Range | Unit | Description |
|---|---|---|---|---|
| diameter | 25 | 8 to 60 step 1 | mm | Diameter of the rod body. |
| height | 40 | 10 to 150 step 1 | mm | Length of this section, thread included. |
Lineage
0 models depend on this oneOnly what this model came from and what came from it.
License
Whoever downloads this takes these obligations along- remixcad/threaded-rod-end@1.0.0 is CC0
- remixcad/threads@1.0.0 is CC0
Source
main.scad is the entrypointmain.scad
// Uses threads.scad by Ryan A. Colyer, released with CC0 into the public domain. Published on RemixCAD as remixcad/threads.
use <remixcad/threads/threads.scad>
diameter = 25; // [8:1:60]
height = 40; // [10:1:150]
RodEnd(diameter, height);
