A plain externally threaded rod, with no head and no point. The building block the bolts and screws in this collection are made of.

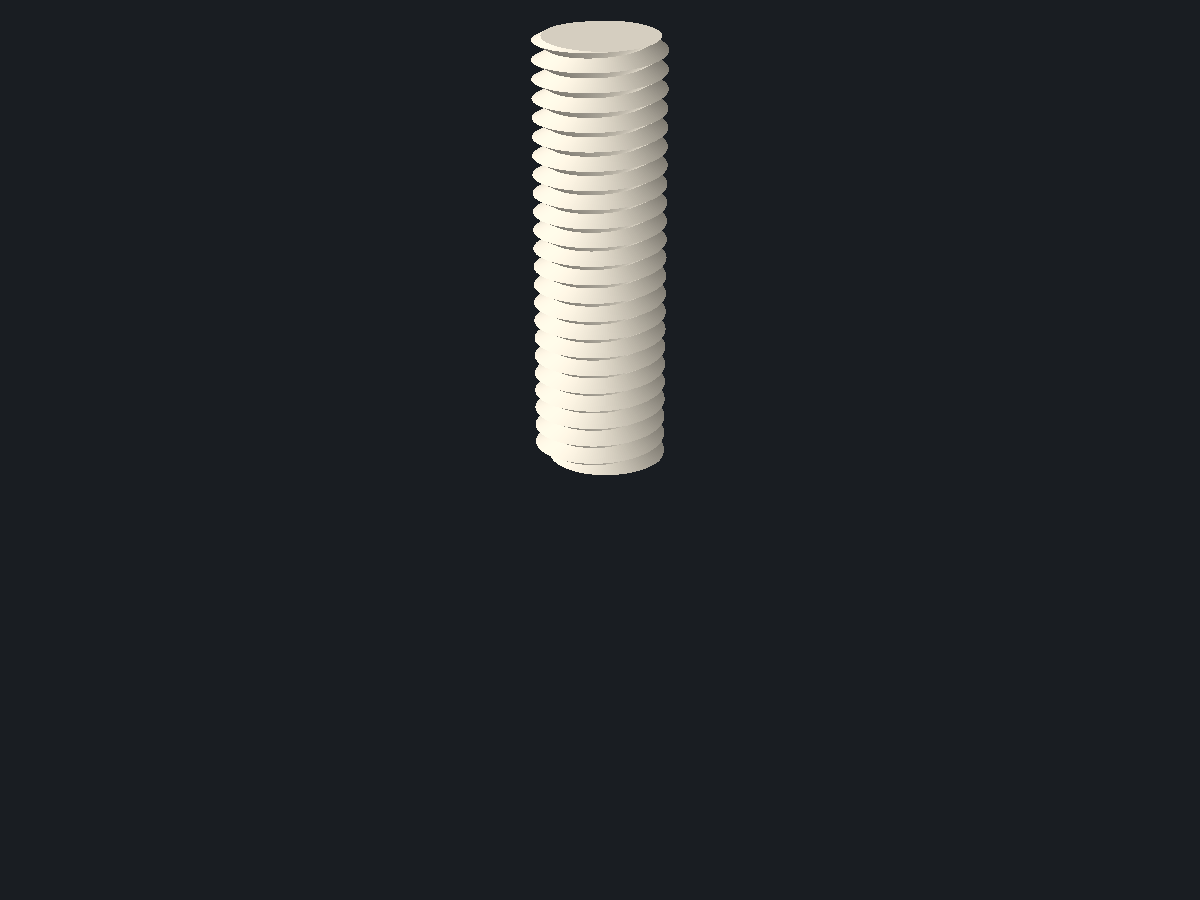

The image shows the solid OpenSCAD renders at diameter 12 · height 40 · pitch 0 · tolerance 0.4.
Threaded rod
remixcad/threaded-rod@1.0.0
Report
For a legal or policy problem: a license violation, personal data, somebody else’s work republished as their own. A model that prints badly is a comment, not a report.
Parameters
from sourceDescription
What is this
A plain externally threaded rod, with no head and no point. The building block the bolts and screws in this collection are made of.
What you use it for
Leadscrews, adjusting screws, clamp spindles, and anywhere you need a thread on something you are designing yourself. Cut it to the length you need by setting the height.
Design notes
Leave pitch at zero and the metric standard pitch for that diameter is used, which is what you want unless you are matching something existing. A coarser pitch prints more reliably and turns faster; a finer one holds position better.
Parameters
diameter is measured over the thread, not the core. height is the full length. pitch at zero means standard.
Use with your agent
{
"mcpServers": {
"remixcad": {
"type": "http",
"url": "https://remix-cad.vercel.app/api/mcp"
}
}
}get_model("remixcad/threaded-rod@1.0.0")Returns the manifest, the source, the import closure and the license obligations. Full MCP setup.
Parameter table
Parsed from the Customizer annotations in main.scad| Name | Default | Range | Unit | Description |
|---|---|---|---|---|
| diameter | 12 | 4 to 40 step 1 | mm | Outer diameter over the thread. |
| height | 40 | 5 to 200 step 1 | mm | Length of the rod. |
| pitch | 0 | 0 to 6 step 0.25 | mm | Distance between turns. Zero takes the metric standard. |
| tolerance | 0.4 | 0 to 1 step 0.05 | mm | Taken off the thread to allow for printing. |
Lineage
0 models depend on this oneOnly what this model came from and what came from it.
License
Whoever downloads this takes these obligations along- remixcad/threaded-rod@1.0.0 is CC0
- remixcad/threads@1.0.0 is CC0
Source
main.scad is the entrypointmain.scad
// Uses threads.scad by Ryan A. Colyer, released with CC0 into the public domain. Published on RemixCAD as remixcad/threads.
use <remixcad/threads/threads.scad>
diameter = 12; // [4:1:40]
height = 40; // [5:1:200]
pitch = 0; // [0:0.25:6]
tolerance = 0.4; // [0:0.05:1]
ScrewThread(diameter, height, pitch, tolerance = tolerance);
Comments
Context, not a score. Comments never move a model up or down the results.No comments yet
Printed it? A note about your material and the clearance you landed on saves the next person a failed print.
