A countersunk screw with a coarse tapered thread that comes to a point, of the kind that cuts its own way into soft material.

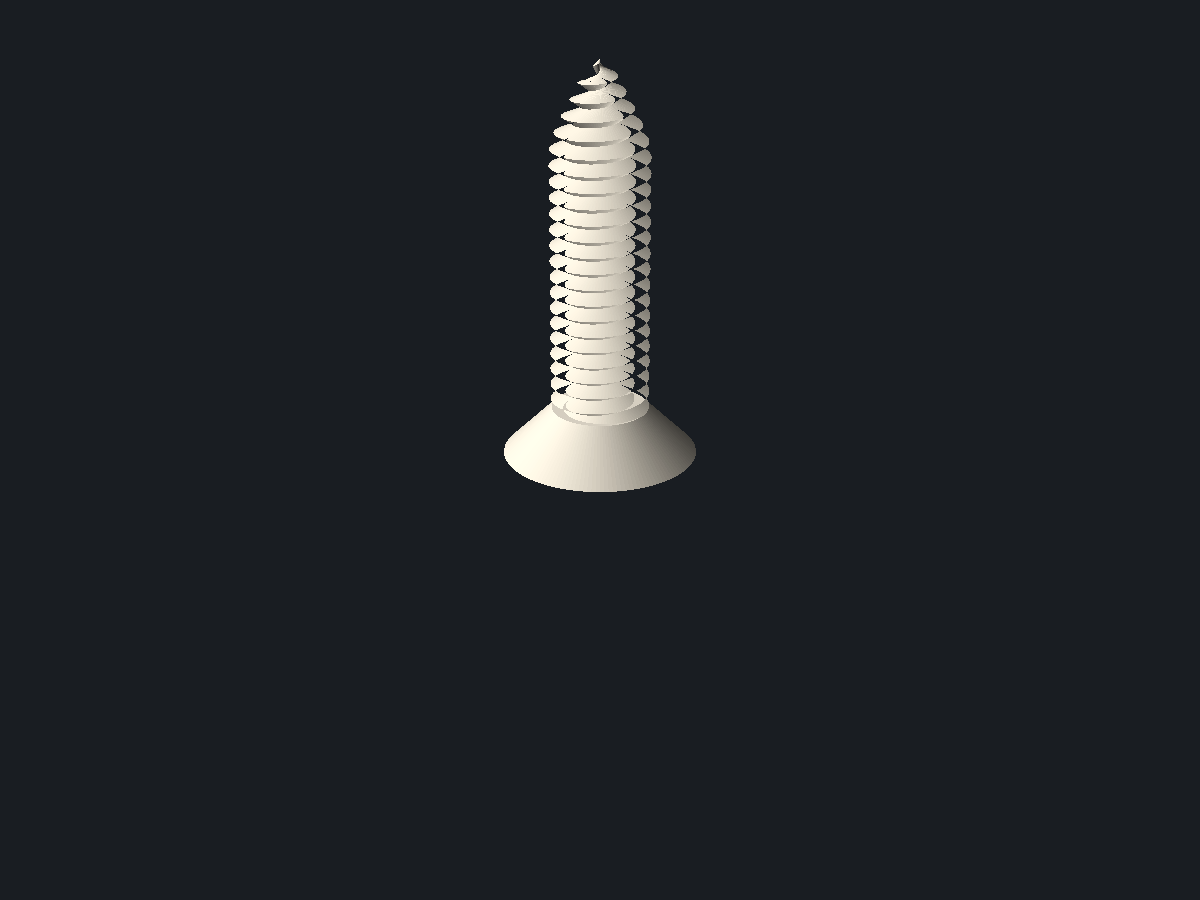

The image shows the solid OpenSCAD renders at diameter 6 · length 25 · tolerance 0.4.
Metric wood screw
remixcad/metric-wood-screw@1.0.0
Report
For a legal or policy problem: a license violation, personal data, somebody else’s work republished as their own. A model that prints badly is a comment, not a report.
Parameters
from sourceDescription
What is this
A countersunk screw with a coarse tapered thread that comes to a point, of the kind that cuts its own way into soft material.
What you use it for
Fastening into printed parts, foam or soft wood without a nut on the other side. Useful when you want the fastener itself printed rather than sourced.
Design notes
The taper is what the threading routine does with a partially tapered end, so the point is real geometry and not a cone stuck on the tip. A printed screw will not hold like a steel one; keep the load light.
Parameters
diameter is the nominal size and length includes the head. Coarse threads print better at larger diameters, so start around 6 mm.
Use with your agent
{
"mcpServers": {
"remixcad": {
"type": "http",
"url": "https://remix-cad.vercel.app/api/mcp"
}
}
}get_model("remixcad/metric-wood-screw@1.0.0")Returns the manifest, the source, the import closure and the license obligations. Full MCP setup.
Parameter table
Parsed from the Customizer annotations in main.scad| Name | Default | Range | Unit | Description |
|---|---|---|---|---|
| diameter | 6 | 3 to 16 step 1 | mm | Nominal metric diameter, so 8 is an M8. |
| length | 25 | 8 to 80 step 1 | mm | Total length including the head. |
| tolerance | 0.4 | 0 to 1 step 0.05 | mm | Taken off the thread to allow for printing. |
Lineage
0 models depend on this oneOnly what this model came from and what came from it.
License
Whoever downloads this takes these obligations along- remixcad/metric-wood-screw@1.0.0 is CC0
- remixcad/threads@1.0.0 is CC0
Source
main.scad is the entrypointmain.scad
// Uses threads.scad by Ryan A. Colyer, released with CC0 into the public domain. Published on RemixCAD as remixcad/threads.
use <remixcad/threads/threads.scad>
diameter = 6; // [3:1:16]
length = 25; // [8:1:80]
tolerance = 0.4; // [0:0.05:1]
MetricWoodScrew(diameter, length, tolerance);
