A flat washer sized to the metric standard for its bolt diameter.

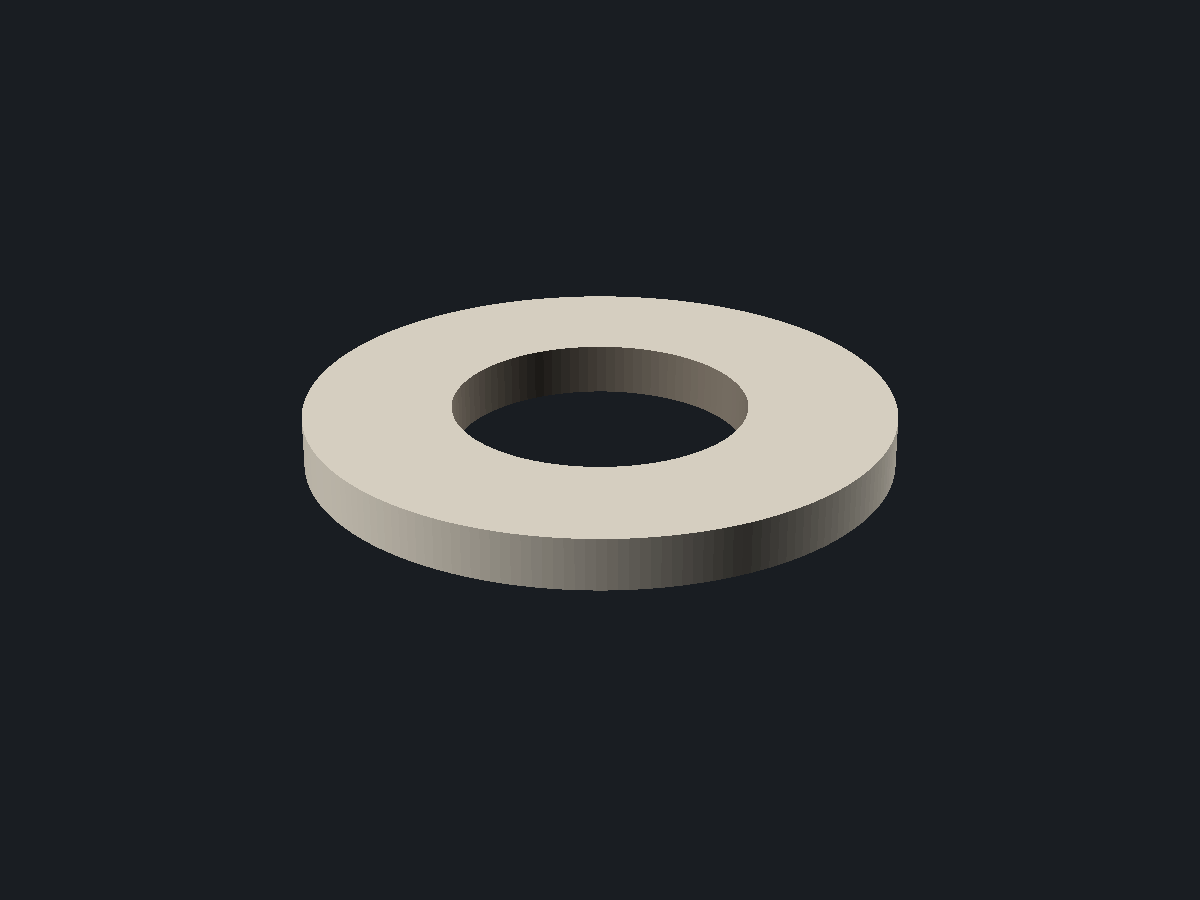

The image shows the solid OpenSCAD renders at diameter 8.
Metric washer
remixcad/metric-washer@1.0.0
Report
For a legal or policy problem: a license violation, personal data, somebody else’s work republished as their own. A model that prints badly is a comment, not a report.
Parameters
from sourceDescription
What is this
A flat washer sized to the metric standard for its bolt diameter.
What you use it for
Spreading the load under a printed bolt head or nut, which matters more with plastic than with steel because the head will otherwise sink into the surface.
Design notes
Thin flat parts print fastest lying down, and this one has no features that need any orientation other than flat on the bed.
Parameters
diameter is the bolt it goes around, not the outside of the washer. The outside and the thickness come from the standard for that size.
Use with your agent
{
"mcpServers": {
"remixcad": {
"type": "http",
"url": "https://remix-cad.vercel.app/api/mcp"
}
}
}get_model("remixcad/metric-washer@1.0.0")Returns the manifest, the source, the import closure and the license obligations. Full MCP setup.
Parameter table
Parsed from the Customizer annotations in main.scad| Name | Default | Range | Unit | Description |
|---|---|---|---|---|
| diameter | 8 | 3 to 20 step 1 | mm | Nominal metric diameter, so 8 is an M8. |
Lineage
0 models depend on this oneOnly what this model came from and what came from it.
License
Whoever downloads this takes these obligations along- remixcad/metric-washer@1.0.0 is CC0
- remixcad/threads@1.0.0 is CC0
Source
main.scad is the entrypointmain.scad
// Uses threads.scad by Ryan A. Colyer, released with CC0 into the public domain. Published on RemixCAD as remixcad/threads.
use <remixcad/threads/threads.scad>
diameter = 8; // [3:1:20]
MetricWasher(diameter);
