The hex nut that goes with the metric bolt: standard across flats, standard thickness, internal thread cut to the metric pitch for its diameter.

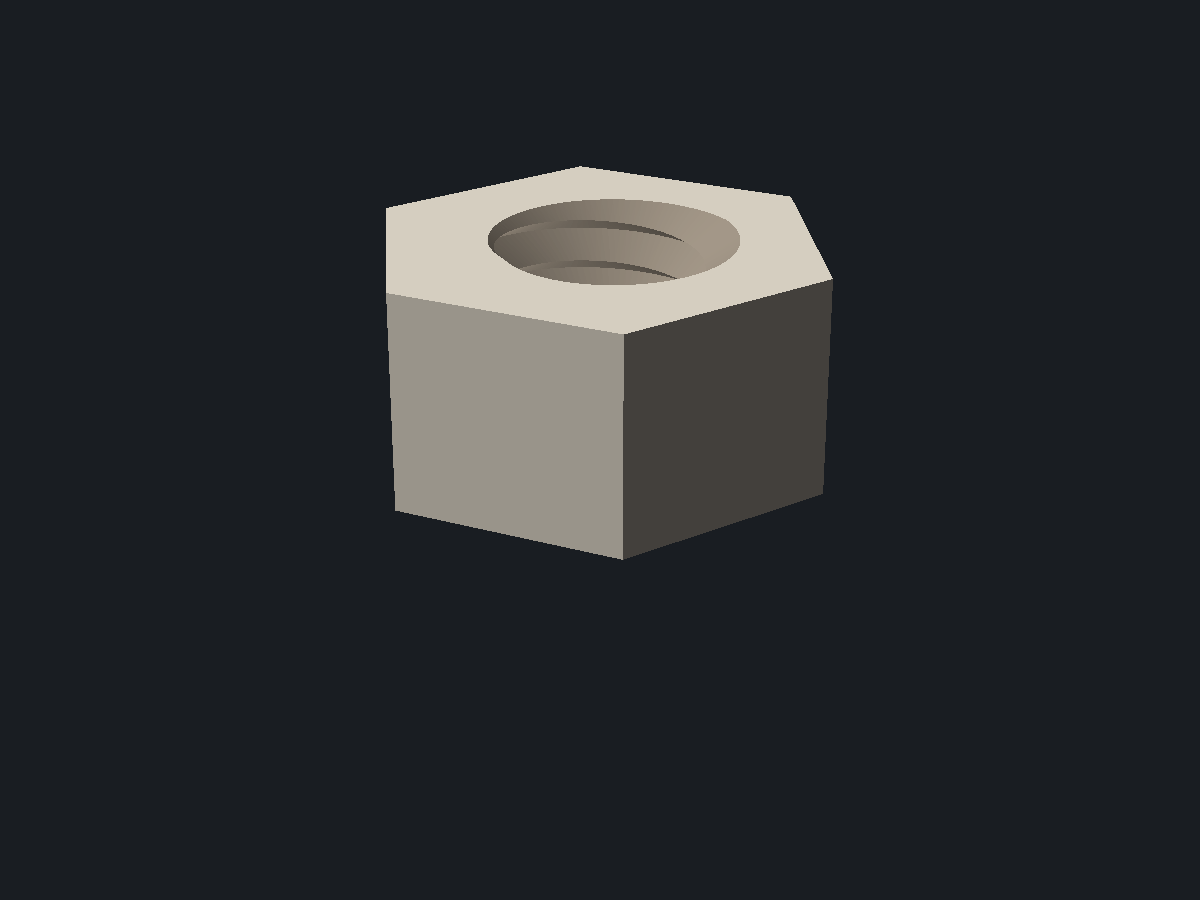

The image shows the solid OpenSCAD renders at diameter 8 · thickness 0 · tolerance 0.4.
Metric hex nut
remixcad/metric-nut@1.0.0
Report
For a legal or policy problem: a license violation, personal data, somebody else’s work republished as their own. A model that prints badly is a comment, not a report.
Parameters
from sourceDescription
What is this
The hex nut that goes with the metric bolt: standard across flats, standard thickness, internal thread cut to the metric pitch for its diameter.
What you use it for
The other half of a printed fastener. Also useful as a captive nut, dropped into a hexagonal pocket in a larger print so it cannot turn.
Design notes
Leave thickness at zero and the standard height for that diameter is used. The internal thread carries the same tolerance as the bolt, so a pair printed on the same machine at the same setting will thread together.
Parameters
diameter is the nominal metric size and has to match the bolt. thickness overrides the standard height, which is worth doing when the nut has to sit in a shallow pocket.
Use with your agent
{
"mcpServers": {
"remixcad": {
"type": "http",
"url": "https://remix-cad.vercel.app/api/mcp"
}
}
}get_model("remixcad/metric-nut@1.0.0")Returns the manifest, the source, the import closure and the license obligations. Full MCP setup.
Parameter table
Parsed from the Customizer annotations in main.scad| Name | Default | Range | Unit | Description |
|---|---|---|---|---|
| diameter | 8 | 3 to 20 step 1 | mm | Nominal metric diameter, so 8 is an M8. |
| thickness | 0 | 0 to 20 step 1 | mm | Height of the nut. Zero takes the standard for the diameter. |
| tolerance | 0.4 | 0 to 1 step 0.05 | mm | Taken off the thread to allow for printing. |
Lineage
0 models depend on this oneOnly what this model came from and what came from it.
License
Whoever downloads this takes these obligations along- remixcad/metric-nut@1.0.0 is CC0
- remixcad/threads@1.0.0 is CC0
Source
main.scad is the entrypointmain.scad
// Uses threads.scad by Ryan A. Colyer, released with CC0 into the public domain. Published on RemixCAD as remixcad/threads.
use <remixcad/threads/threads.scad>
diameter = 8; // [3:1:20]
thickness = 0; // [0:1:20]
tolerance = 0.4; // [0:0.05:1]
MetricNut(diameter, thickness, tolerance);
