A metric bolt with a countersunk head and a Phillips recess, so it sits flush with the surface it goes through.

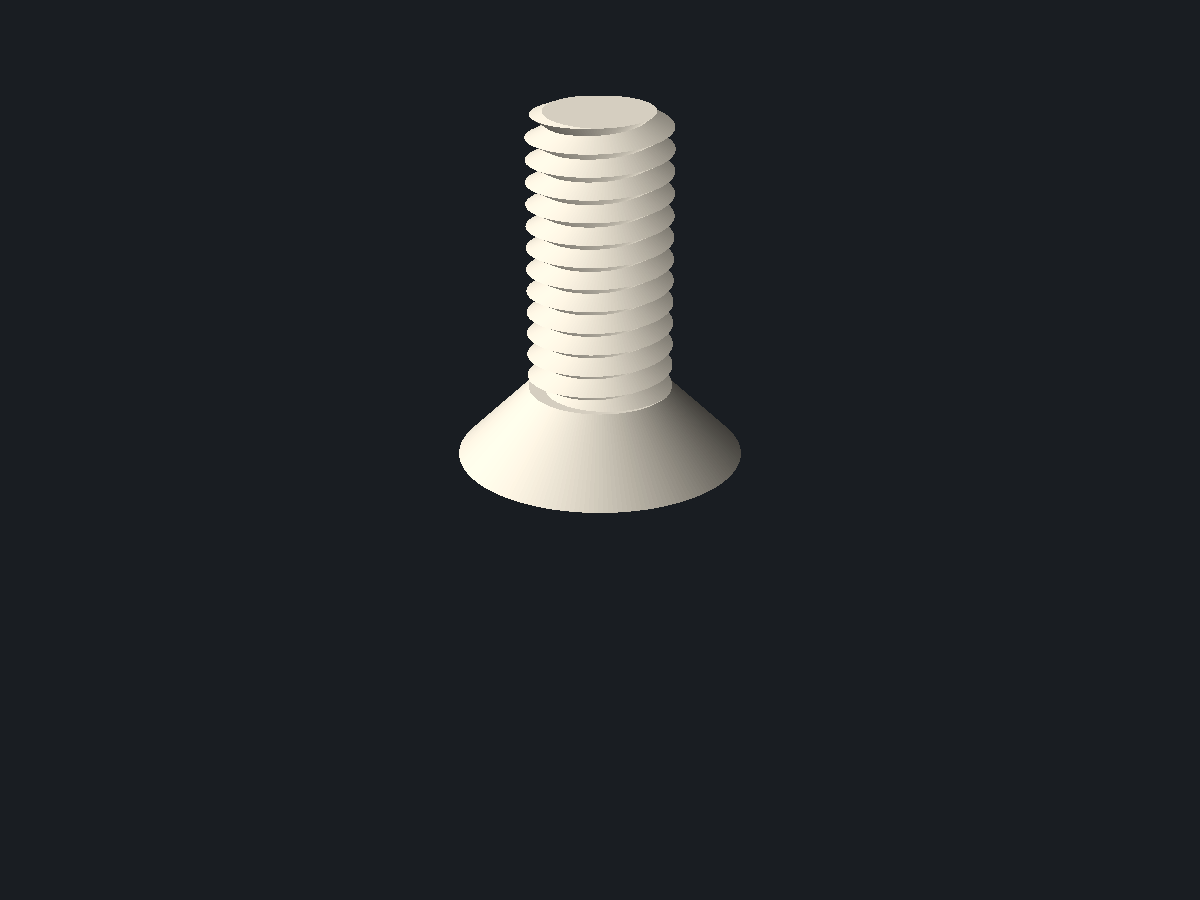

The image shows the solid OpenSCAD renders at diameter 8 · length 20 · tolerance 0.4.
Metric countersunk bolt
remixcad/metric-countersunk-bolt@1.0.0
Report
For a legal or policy problem: a license violation, personal data, somebody else’s work republished as their own. A model that prints badly is a comment, not a report.
Parameters
from sourceDescription
What is this
A metric bolt with a countersunk head and a Phillips recess, so it sits flush with the surface it goes through.
What you use it for
Anywhere a head sticking up would be in the way: sliding surfaces, lids, plates that something else has to lie flat against.
Design notes
The head angle and the drive recess follow the same metric tables the rest of the library uses. Print it head down on the bed and the cone comes out clean without supports.
Parameters
diameter is the nominal metric size. length here includes the head, because that is the dimension that matters when the head is buried.
Use with your agent
{
"mcpServers": {
"remixcad": {
"type": "http",
"url": "https://remix-cad.vercel.app/api/mcp"
}
}
}get_model("remixcad/metric-countersunk-bolt@1.0.0")Returns the manifest, the source, the import closure and the license obligations. Full MCP setup.
Parameter table
Parsed from the Customizer annotations in main.scad| Name | Default | Range | Unit | Description |
|---|---|---|---|---|
| diameter | 8 | 3 to 20 step 1 | mm | Nominal metric diameter, so 8 is an M8. |
| length | 20 | 6 to 80 step 1 | mm | Total length including the head. |
| tolerance | 0.4 | 0 to 1 step 0.05 | mm | Taken off the thread to allow for printing. |
Lineage
0 models depend on this oneOnly what this model came from and what came from it.
License
Whoever downloads this takes these obligations along- remixcad/metric-countersunk-bolt@1.0.0 is CC0
- remixcad/threads@1.0.0 is CC0
Source
main.scad is the entrypointmain.scad
// Uses threads.scad by Ryan A. Colyer, released with CC0 into the public domain. Published on RemixCAD as remixcad/threads.
use <remixcad/threads/threads.scad>
diameter = 8; // [3:1:20]
length = 20; // [6:1:80]
tolerance = 0.4; // [0:0.05:1]
MetricCountersunkBolt(diameter, length, tolerance);
