A printable metric hex bolt: hex head, threaded shank, thread pitch taken from the metric standard for the diameter you pick.

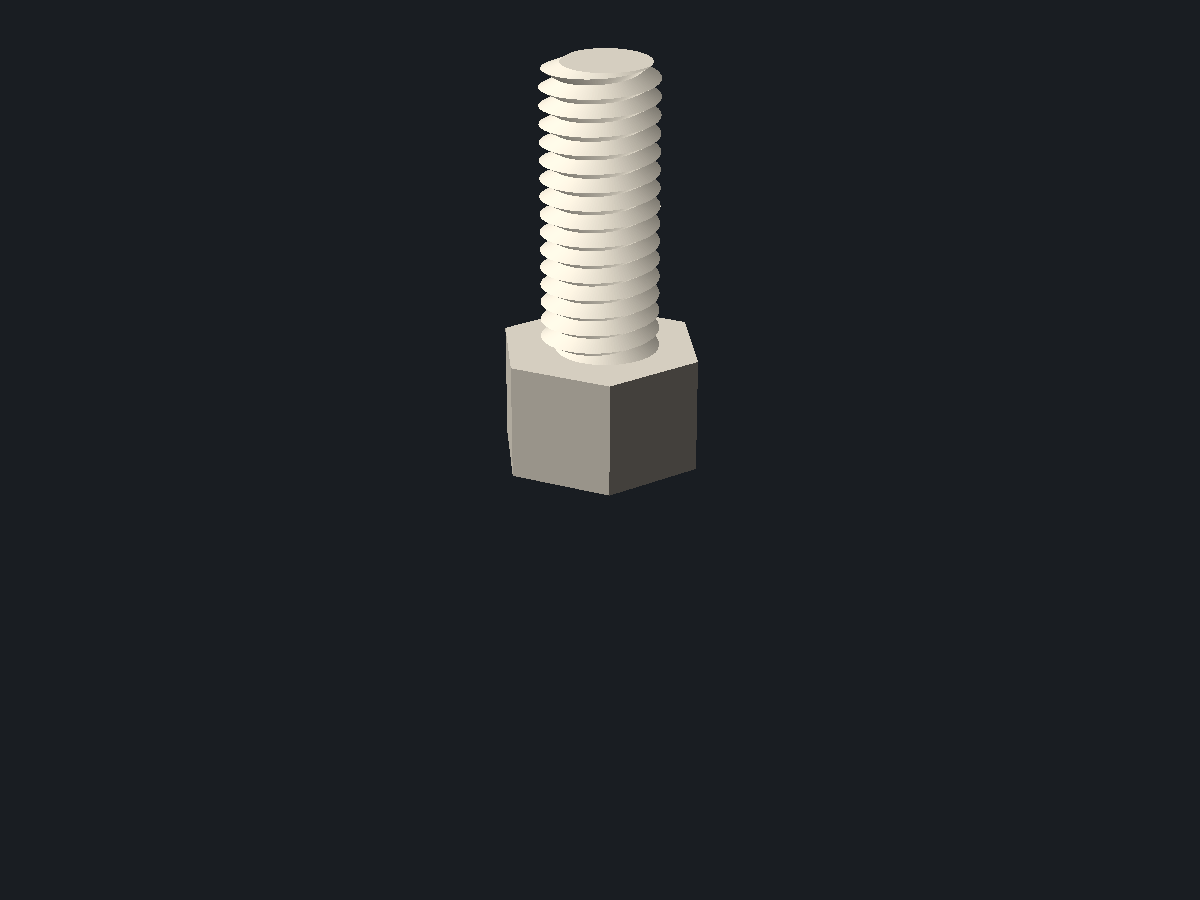

The image shows the solid OpenSCAD renders at diameter 8 · length 20 · tolerance 0.4.
Metric hex bolt
remixcad/metric-bolt@1.0.0
Report
For a legal or policy problem: a license violation, personal data, somebody else’s work republished as their own. A model that prints badly is a comment, not a report.
Parameters
from sourceDescription
What is this
A printable metric hex bolt: hex head, threaded shank, thread pitch taken from the metric standard for the diameter you pick.
What you use it for
Printed fasteners for jigs, fixtures and prints that have to come apart again, where a steel bolt would be overkill or would not fit. Pair it with the matching nut.
Design notes
The head is sized to the standard across flats for the diameter. The thread is generated as one polyhedron, which prints smoother and renders faster than a swept profile.
The tolerance is subtracted from the thread rather than added to the hole, so a bolt and nut printed at the same setting fit each other.
Parameters
diameter is the nominal metric size, so 8 gives an M8. length is measured under the head. Raise tolerance if your printer runs wide and the bolt binds.
Use with your agent
{
"mcpServers": {
"remixcad": {
"type": "http",
"url": "https://remix-cad.vercel.app/api/mcp"
}
}
}get_model("remixcad/metric-bolt@1.0.0")Returns the manifest, the source, the import closure and the license obligations. Full MCP setup.
Parameter table
Parsed from the Customizer annotations in main.scad| Name | Default | Range | Unit | Description |
|---|---|---|---|---|
| diameter | 8 | 3 to 20 step 1 | mm | Nominal metric diameter, so 8 is an M8. |
| length | 20 | 6 to 80 step 1 | mm | Shank length under the head. |
| tolerance | 0.4 | 0 to 1 step 0.05 | mm | Taken off the thread to allow for printing. |
Lineage
1 model depends on this oneOnly what this model came from and what came from it.
License
Whoever downloads this takes these obligations along- remixcad/metric-bolt@1.0.0 is CC0
- remixcad/threads@1.0.0 is CC0
Source
main.scad is the entrypointmain.scad
// Uses threads.scad by Ryan A. Colyer, released with CC0 into the public domain. Published on RemixCAD as remixcad/threads.
use <remixcad/threads/threads.scad>
diameter = 8; // [3:1:20]
length = 20; // [6:1:80]
tolerance = 0.4; // [0:0.05:1]
MetricBolt(diameter, length, tolerance);
