An auger: a deep helical flight wrapped around a thin shaft, rather than the shallow thread of a screw.

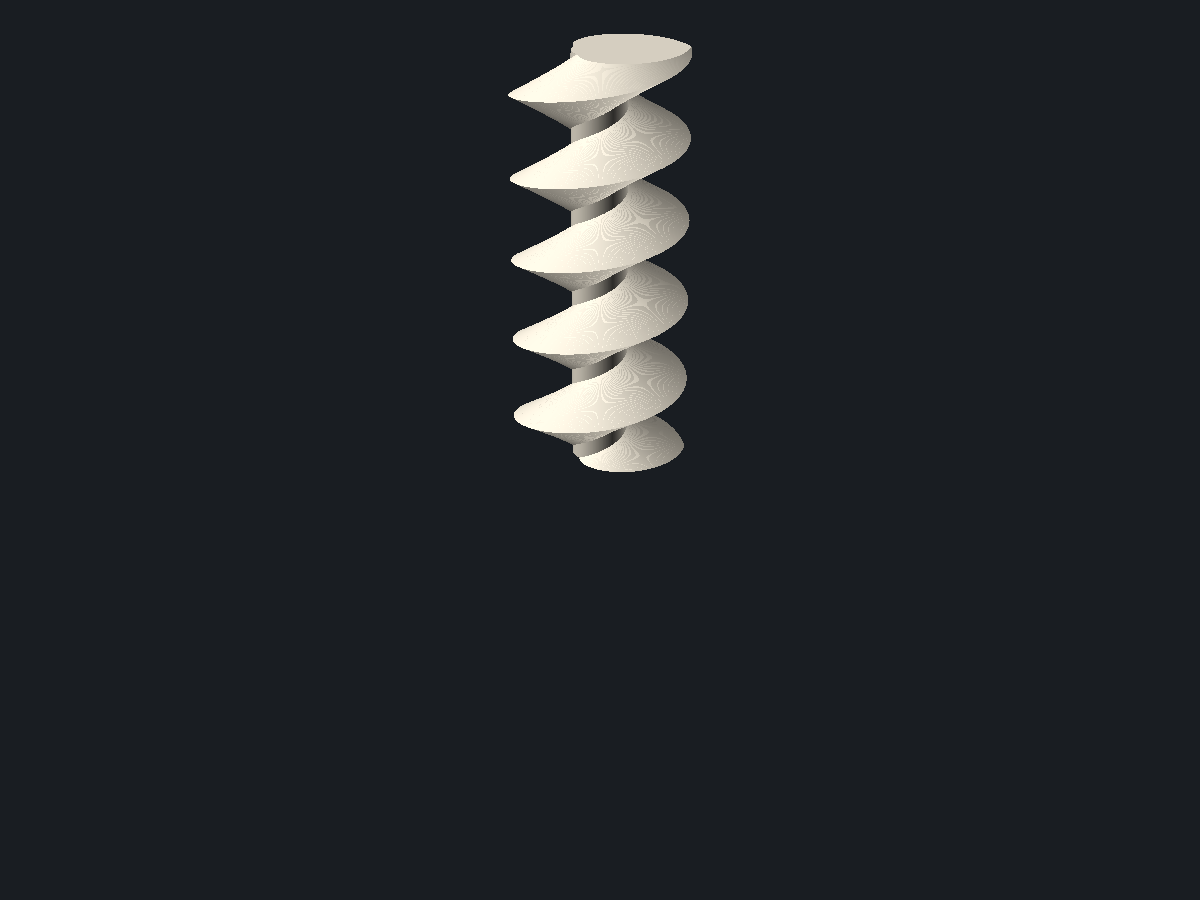

The image shows the solid OpenSCAD renders at outer_diameter 25 · inner_diameter 8 · height 60 · pitch 12.
Auger thread
remixcad/auger-thread@1.0.0
Report
For a legal or policy problem: a license violation, personal data, somebody else’s work republished as their own. A model that prints badly is a comment, not a report.
Parameters
from sourceDescription
What is this
An auger: a deep helical flight wrapped around a thin shaft, rather than the shallow thread of a screw.
What you use it for
Moving material rather than holding things together. Feed screws, extruders, drills, and mechanisms that have to carry something along as they turn.
Design notes
The gap between the outer and inner diameter is the flight depth, and that is the number that decides how much it moves per turn. Keep the inner diameter thick enough to take the twisting force, because a thin printed shaft will shear before the flight fails.
Parameters
outer_diameter is over the flight and inner_diameter is the shaft. pitch is the travel per full turn, so a larger pitch moves more material per revolution.
Use with your agent
{
"mcpServers": {
"remixcad": {
"type": "http",
"url": "https://remix-cad.vercel.app/api/mcp"
}
}
}get_model("remixcad/auger-thread@1.0.0")Returns the manifest, the source, the import closure and the license obligations. Full MCP setup.
Parameter table
Parsed from the Customizer annotations in main.scad| Name | Default | Range | Unit | Description |
|---|---|---|---|---|
| outer_diameter | 25 | 8 to 80 step 1 | mm | Diameter over the flight. |
| inner_diameter | 8 | 3 to 40 step 1 | mm | Diameter of the shaft the flight wraps. |
| height | 60 | 10 to 200 step 1 | mm | Length of the auger. |
| pitch | 12 | 2 to 40 step 1 | mm | Distance between turns. |
Lineage
0 models depend on this oneOnly what this model came from and what came from it.
License
Whoever downloads this takes these obligations along- remixcad/auger-thread@1.0.0 is CC0
- remixcad/threads@1.0.0 is CC0
Source
main.scad is the entrypointmain.scad
// Uses threads.scad by Ryan A. Colyer, released with CC0 into the public domain. Published on RemixCAD as remixcad/threads.
use <remixcad/threads/threads.scad>
outer_diameter = 25; // [8:1:80]
inner_diameter = 8; // [3:1:40]
height = 60; // [10:1:200]
pitch = 12; // [2:1:40]
AugerThread(outer_diameter, inner_diameter, height, pitch);
