Double wall holder for paper rolls

// A double wall holder for paper rolls (brown paper / kraft paper). Two identical brackets,
// each with two arms carrying an open-top slot. A rod through the roll core drops into the
// slots from above. Built from straight rectangles; corners and edges are polished
// afterwards as a final step, never as part of the construction.

/* [Parts] */
// Render the assembly, or one part laid down for printing.
part = "assembly"; // [assembly, bracket, cap]

/* [Roll] */
// Largest diameter of a full roll.
roll_d = 100; // [40:5:140]
// Width of the paper. Only sizes the preview and the rod length.
paper_width = 1000; // [200:10:1600]
// Diameter of the rod through the roll core.
rod_d = 20; // [8:1:35]
// Spare room for the rod in the slot.
rod_fit = 0.6; // [0.2:0.1:2]

/* [Bracket] */
// Width of the bracket along the wall. This is the print height.
width = 22; // [14:1:40]
// Thickness of the back plate against the wall.
back_t = 8; // [5:0.5:14]
// Material under the rod.
under = 12; // [8:1:25]
// Thickness of the lip in front of the slot.
lip = 10; // [8:1:20]
// How far the arm stands above the top of the rod.
rise = 6; // [0:1:20]
// Size of the funnel at the slot entry. Zero removes it.
funnel = 5; // [0:1:10]
// Room between a full roll and the wall.
wall_gap = 10; // [5:1:40]
// Spare room between the rolls while lifting the lower one in.
roll_gap = 10; // [5:1:40]

/* [Screws] */
// Number of wall screws per bracket.
screws = 2; // [2:1:4]
// Hole diameter for the wall screws.
screw_d = 4.5; // [3:0.5:6]
// Diameter of the countersunk screw head.
head_d = 9; // [6:0.5:14]

/* [Cap] */
// Wall thickness of the rod end cap.
cap_wall = 5; // [3:0.5:8]
// How far the rod goes into the cap.
cap_depth = 12; // [6:1:25]
// Spare room for the rod in the cap.
cap_fit = 0.3; // [0:0.05:1]
// Axial screw hole to fix the cap to a wooden dowel. Zero removes it.
cap_screw_d = 3.5; // [0:0.5:5]

/* [Polish] */
// Radius the profile corners are rounded to. Zero keeps them sharp.
round_r = 3; // [0:0.5:4]
// Chamfer on the two faces of the bracket and on the cap. Zero keeps them sharp.
chamfer = 1.2; // [0:0.2:2.4]

/* [Quality] */
// Facets on the rounded parts. More is smoother and slower.
smoothness = 48; // [16:8:96]

/* [Colour] */
// Colour the brackets are shown in. Display only, the STL carries no colour.
color_bracket = "White"; // [White, Gainsboro, Silver, DimGray, Black, SlateGray, FireBrick, SteelBlue, ForestGreen, Goldenrod]
// Colour the end caps are shown in.
color_cap = "DimGray"; // [DimGray, Black, SlateGray, Silver, Gainsboro, White, FireBrick, SteelBlue, ForestGreen, Goldenrod]

/* [Hidden] */
slot_w = rod_d + rod_fit;
slot_depth = rod_d + rise;
arm_h = under + slot_depth;
// The slot never cuts into the back plate, however small the roll.
seat_x = max(wall_gap + roll_d / 2, back_t + slot_w / 2 + 6);
reach = seat_x + slot_w / 2 + lip;
// The lower roll passes over its lip while a full roll hangs above it.
pitch = max(roll_d + slot_depth + roll_gap, arm_h + rod_d + roll_gap);
height = pitch + arm_h;
fun = min(funnel, lip - 3);

side_gap = 5;
play = 2;
cap_end = 4;
bracket_y = paper_width / 2 + side_gap + width / 2;
rod_len = 2 * (bracket_y + width / 2 + play + cap_depth);
core_id = max(rod_d + 2, min(rod_d + 20, roll_d * 0.5));

function seat_z(i) = i * pitch + under + rod_d / 2;

echo(str("Rod length: ", rod_len, " mm"));
echo(str("Bracket: ", reach, " x ", height, " x ", width, " mm"));

// The polish: a closing pass rounds the concave corners, an opening pass the convex
// ones. Applied over the finished straight shape, never during it.
module polish2d(r) {
  if (r > 0)
    offset(r = r, $fn = smoothness)
      offset(r = -2 * r, $fn = smoothness)
        offset(r = r, $fn = smoothness)
          children();
  else
    children();
}

// Extrude with a 45 degree chamfer on both faces, built from thin slices so it stays
// fast. One slice per 0.2 mm, the same as a print layer.
module polish_extrude(h, c) {
  if (c > 0) {
    n = ceil(c / 0.2);
    s = c / n;
    translate([0, 0, c]) linear_extrude(height = h - 2 * c) children();
    for (i = [0 : n - 1]) {
      inset = c - (i + 0.5) * s;
      translate([0, 0, i * s])
        linear_extrude(height = s + 0.001) offset(delta = -inset) children();
      translate([0, 0, h - (i + 1) * s - 0.001])
        linear_extrude(height = s + 0.001) offset(delta = -inset) children();
    }
  } else {
    linear_extrude(height = h) children();
  }
}

// ---- Bracket ----
// One 2D profile of axis-aligned squares, in the XZ plane.
// Origin: the wall at x = 0, the underside of the lower arm at z = 0.

module arm_raw(z0) {
  difference() {
    translate([0, z0]) square([reach, arm_h]);
    // The slot, open at the top, with a round seat for the rod.
    translate([seat_x, z0 + under + slot_w / 2]) {
      circle(d = slot_w, $fn = smoothness);
      translate([-slot_w / 2, 0]) square([slot_w, arm_h]);
    }
    // The funnel, so the rod finds the slot when it drops in from above.
    if (fun > 0)
      translate([seat_x, z0 + arm_h])
        polygon([[-slot_w / 2 - fun, 1], [slot_w / 2 + fun, 1],
                 [slot_w / 2 + fun, 0], [slot_w / 2, -fun],
                 [-slot_w / 2, -fun], [-slot_w / 2 - fun, 0]]);
  }
}

module profile_raw() {
  square([back_t, height]);
  arm_raw(0);
  arm_raw(pitch);
}

module profile() {
  polish2d(round_r) profile_raw();
}

module bracket_body() {
  translate([0, width / 2, 0])
    rotate([90, 0, 0])
      polish_extrude(width, chamfer) profile();
}

module wall_screw(z) {
  cs = (head_d - screw_d) / 2;
  translate([-1, 0, z]) rotate([0, 90, 0])
    cylinder(d = screw_d, h = back_t + 2, $fn = 32);
  translate([back_t - cs, 0, z]) rotate([0, 90, 0])
    cylinder(d1 = screw_d, d2 = head_d, h = cs + 0.01, $fn = 32);
  translate([back_t, 0, z]) rotate([0, 90, 0])
    cylinder(d = head_d, h = 2, $fn = 32);
}

module bracket() {
  z_lo = arm_h + head_d / 2 + 5;
  z_hi = pitch - head_d / 2 - 5;
  difference() {
    bracket_body();
    for (i = [0 : screws - 1])
      wall_screw(z_lo + i * (z_hi - z_lo) / (screws - 1));
  }
}

// ---- Rod end cap ----
// A cup over the rod end, wider than the slot, so the rod cannot wander sideways.

module cap() {
  R = rod_d / 2 + cap_wall;
  rb = (rod_d + cap_fit) / 2;
  H = cap_end + cap_depth;
  c = min(chamfer, cap_wall / 2);
  sr = cap_screw_d / 2;
  difference() {
    rotate_extrude($fn = smoothness)
      polygon([[sr, 0], [R - c, 0], [R, c], [R, H - c], [R - c, H],
               [rb, H], [rb, cap_end], [sr, cap_end]]);
    if (cap_screw_d > 0)
      translate([0, 0, -0.01])
        cylinder(d1 = 2 * cap_screw_d, d2 = cap_screw_d, h = cap_screw_d / 2, $fn = 32);
  }
}

// ---- Preview only: rod and rolls ----

module rod(i) {
  translate([seat_x, rod_len / 2, seat_z(i)]) rotate([90, 0, 0])
    cylinder(d = rod_d, h = rod_len, $fn = smoothness);
}

module roll(i, d) {
  // The roll hangs on the rod by its core, so it sits a little lower than the rod.
  translate([seat_x, paper_width / 2, seat_z(i) - (core_id - rod_d) / 2])
    rotate([90, 0, 0])
      difference() {
        cylinder(d = d, h = paper_width, $fn = smoothness);
        translate([0, 0, -1]) cylinder(d = core_id, h = paper_width + 2, $fn = smoothness);
      }
}

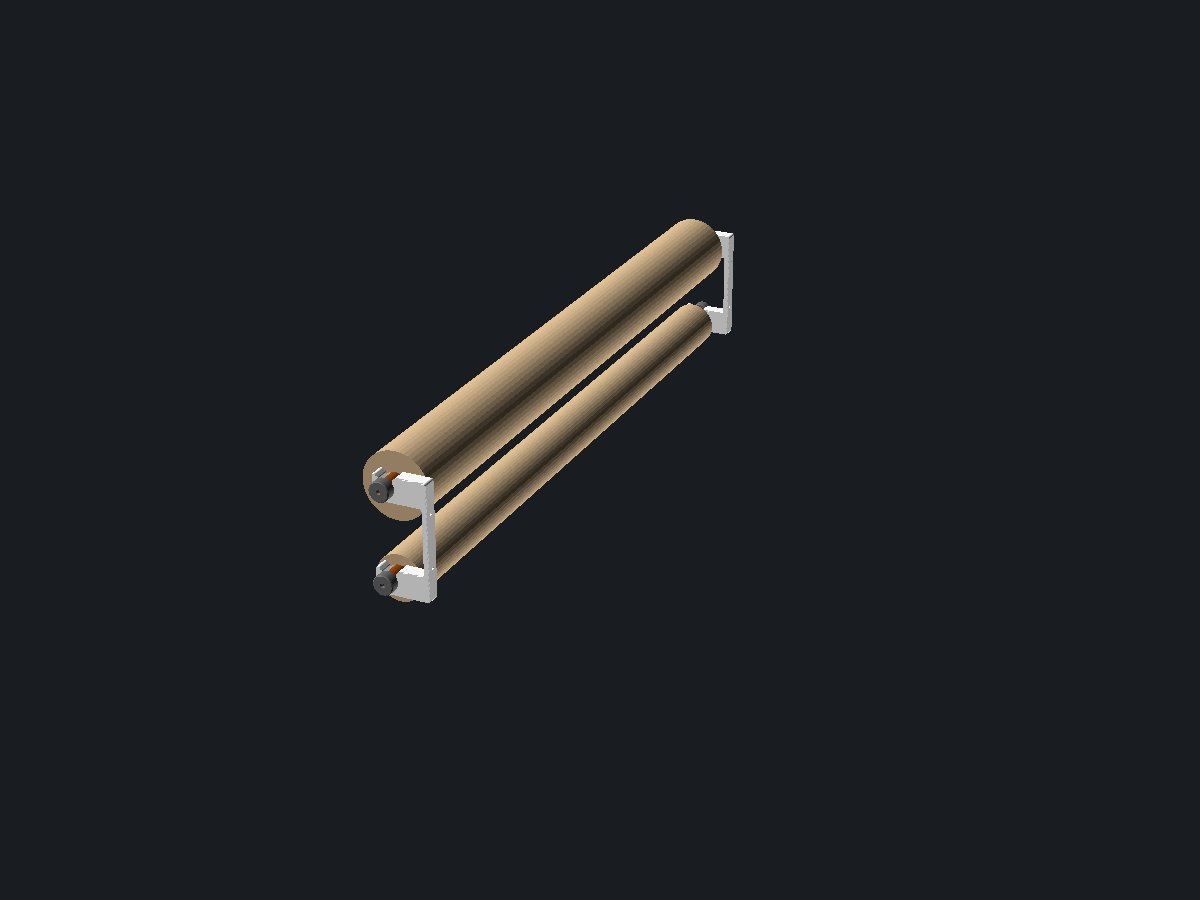

// ---- Layout ----

if (part == "bracket") {
  // On its side, ready to print. Print it twice, left and right are the same.
  color(color_bracket) translate([0, 0, width / 2]) rotate([90, 0, 0]) bracket();
} else if (part == "cap") {
  color(color_cap) cap();
} else {
  for (s = [-1, 1])
    color(color_bracket) translate([0, s * bracket_y, 0]) bracket();
  for (i = [0, 1]) {
    color("SaddleBrown") rod(i);
    color(color_cap) translate([seat_x, rod_len / 2 + cap_end, seat_z(i)])
      rotate([90, 0, 0]) cap();
    color(color_cap) translate([seat_x, -(rod_len / 2 + cap_end), seat_z(i)])
      rotate([-90, 0, 0]) cap();
  }
  // A full roll above, a partly used one below.
  color("Tan") roll(1, roll_d);
  color("Tan") roll(0, max(roll_d * 0.7, core_id + 6));
}
